Product Features
◆ Print Method: Impact dot matrix dot matrix printing.
◆ Printer Core : Nine -pin -column ( pin diameter 0.3mm).
◆ Print direction : Bi-directional printing ( with Boolean search capabilities ) .
◆ Print Density : 42CPL-210 ( full dot ) / 420 ( the slightest ), 40CPL-200 ( full dot ) / 400 ( the slightest ) .
◆ print width : 42CPL-42 (7 × 7) / 35 (5 × 7), 40CPL-40 (7 × 7) / 33 (5 × 7).
◆ Full Point Size : 0.302mm ( horizontal ) × 0.353mm ( vertical direction ) .
◆ Print speed:
       When 42CPL is about 4.0 lines / sec .
       When 40CPL is about 4.2 lines / sec .
       When 16CPL is about 7.10 lines / sec .
◆ paper speed : about 100mm / s.
◆ Feed speed: approximately 300mm / sec .
◆ Print Interface: RS232 serial interface and IEEE1284 bidirectional parallel port .
◆ Print command : EPSON ESC / POS command set compatible .
◆ Dimension : 181 ( length ) × 182 ( W ) × 166 ( H) mm
◆ Power input: Input DC 24V + / -5%, 2A ( average ), 10A ( max ) ; power input socket : Using 4PIN of Molex 5274-4,3.96 spacing.
◆ Environmental conditions: Operating temperature :5-40 ℃, relative humidity 10-80% Storage temperature : -20-60 ℃, relative humidity :10- 90%
Paper Specifications
◆ Plain Paper Technical Specifications
1 ) Paper feed method : Friction feed level
2 ) paper feed precision: the default settings take the paper 1/6 inch , you can go through the command to set the paper an accuracy of 1 / 144 inches .
3 ) paper speed : about 4 lines / sec .. 4 ) Roll Size
◆ Roll dimensions:
Paper width : 76.0 + /-0.5mm roll diameter : 170mm ( max ) Roll diameter : 26 + /-0.5mm
Paper roll : The standard paper tube or plastic tube is conducive to correctly detect the paper nearly state.
◆ plain white paper
Single Paper thickness : 0.06 ~ 0.085mm
Weight: 52.3 to 60 g / m (45 to55 kg / 1000 /1091 x788 mm)
Recommended roll : Oji Paper mfg. Co., Recording paper
Application:
Bank Wall Buffet Equipment, Self tanker , self telephones, recharge machine , payment machines, self parking with card issuing machine , coupon printer , Queue , Guest machines.

Note: dot matrix printer control panel dp380 movement with different printers print different functions combined into one machine
MS-T380 basic functions:

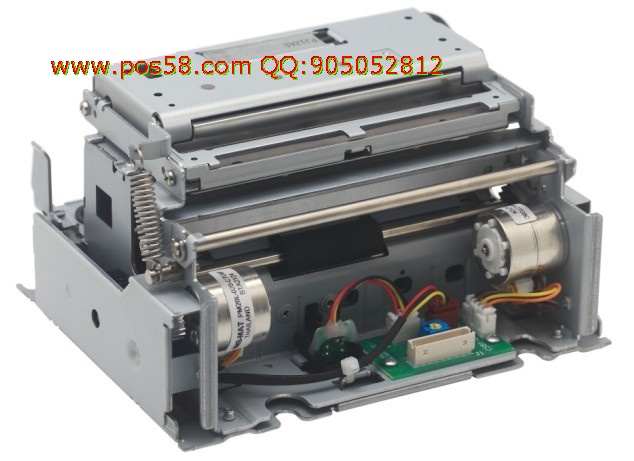

Broadband feeder 80mm dot matrix printer unit , using the Japanese citizen movement imported dp-380 and the Japanese star imported automatic document feeder combined with our self-developed control panel and module dp380 print synthesized into one printer .
Main features:
    Print speed 4.2 lines / sec (24v voltage input )
Printer life : 5 million lines of characters
Cutter life: 1,000,000 times ( full cut / partial cut optional )
Paper feed: 180 degrees horizontal feed , easy paper loading
Paper : 58,76,80,82.5 mm optional plain paper (0.06-0.10mm thick )
With automatic document feeder , up reel
Interface: serial , usb port optional
Feature Comparison :
1 , high reliability, high security , citizen exceptional high reliability products extend the maintenance cycle , MCBF reached 500 million lines .
2, automatic paper feeding and collection functions : to ensure secure print data loss and improve printer performance printing
3 , easy loading paper and maintenance , the use of 180 -degree horizontal feed 90 degrees instead of the traditional way of feeding difficulties and other defects difficult to maintain , reducing the spatial location and cumbersome wiring , to effectively improve the passing rate of product assembly process
4 , the interface varied : serial , TTL, USB to choose from, and providing comprehensive software commands and simple driver (winxp \ win7).
5 , support for multiple languages,
