Products

Dashboard LT2320 control board

Dashboard LT2320 control board

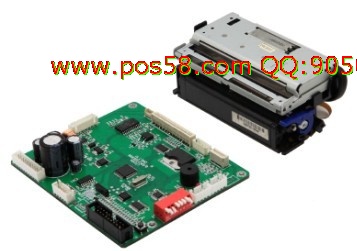

Product name:Dashboard LT2320 control board
Item:Dashboard LT2320 control board控制板LT2320
Details:

Dashboard LT2320



Specifications:
1, Printing method: Thermal line dot matrix printing
2, Total Points: 576 dots / line
3, dot density: 8 dots / mm
4, printing width: 72 mm
5, the print speed: Maximum speed: 1200 lines / sec
6, the feed pitch: 0.125 mm
7, the sensor
Print head temperature: Thermistor
Paper exist: light sensor
Print head lift: light sensor
8, the voltage range
Vp Systems: DC24V ± 10%
Vdd system: DC5V ± 5%
9, the current consumption
Print head (Vp) Maximum: Approx 4.9A (288 points per print)
Average: about 0.62A (12.5% ​​print)
10, paper thickness
Plain paper: 60 ~ 105μm LT2320H (V)
Thick: 110 ~ 150μm LT2320H (V) A
11, feeding intensity: 100gf or more
12, jam strength: 100gf or more
13, the print head life
Anti-pulse: 100 000 000 or above (12.5% ​​print)
Anti-wear: 100km or more
14, environmental
Operation
Temperature: 0 ~ 50 ℃
Humidity: 35 ~ 85% relative humidity
Store
Temperature: -20 ~ 60 ℃
Humidity: 10 ~ 90% relative humidity

Features:
1, small size, light weight.
2, the installation of the thermal recording paper easily.
3, high-speed printing (Maximum speed: 1200 lines / sec).
4, with 8 dots / mm resolution print clearly.
5,80 mm paper width.
6, a simple mechanism to ensure a longer printhead life and high reliability.
7, since the cleaning device having a print head, the print head maintenance is simple and easy.
8 is compatible with all types of paper, such as: Plain paper, high sensitivity wrap, color paper and double carbon.
Application: supermarkets, financial equipment, medical equipment, POS machines, Queue, self-service terminals, post and telecommunications fields, automated teller machines, lottery machines.
