Sharp Pocket Computers, Printers,
Cables, Level Converters & Accessories
- Pocket Computers
- Early Organizers & Tablets
- BASIC Languages
- Cables
- Level Converters
- Printers & Interfaces
- Memory Cards
- AC Adapters/Chargers
- Other Accessories
- Connectors
|
This is a list of many of the Sharp Pocket Computers and their accessories that have been made since about 1977. Most of these items are obsolete, they are here for reference. If known, the last suggested retail price and year are indicated.
Note that we do NOT have these calculators available for sale. Sharp has discontinued all of these models.
|
Sharp Pocket Computers
| Model |
Description |
Display |
ROM |
RAM |
CPU/
Language
|
Power |
Printer/
Interface |
Price/
Year |
|
PC-1100
EL-6300
|
First Sharp
Pocket Computer was also a simple Organizer
156 x 136 x 10 mm (open)
78 x 136 x 12 mm (closed), 140g
|
2 x 16
LCD
|
|
2K
via included CE-210M
|
4-bit
CMOS
SC61720D10
1 MHz
S'-BASIC
|
2 x CR2032
|
11-pin
CE-126P
|
1985
|
|
PC-1201
|
First Sharp Pocket Computer in PC Series. Programmed from keyboard - stored up to 128 program steps in memory.
Numeric-only florescent display.
153 x 76 x 20 mm
210g
|
1 x 12
7-segment
Futaba FD green
|
|
2K
2 x
HM435101FP
(256 x 4 bits)
(128
program steps + 12 memories)
|
4-bit NEC
SC38651
Keys
pressed
Sample Program
|
2 x AA
2 x LR44
(memory backup)
NiCad pack
EA-17E
|
None
|
$89
1977
|
|
EL-5100
EL-5100S
EL-5101
EL-5102
EL-5103
|
Programmable (from keyboard) calculators similar in appearance to PC-1210. EL-5102 had financial functions, others scientific.
|
1 x 24
LCD-Yel
|
|
160 bytes (80 program steps)
|
AER system
|
CR2032
|
|
1979
|
|
PC-1210
PC-1211
PC-1212
|
First Sharp BASIC Pocket Computer
70 x 175 x 15 mm, 170g
PC-1211 also sold by Radio Shack as PC-1
|
1 x 24
LCD-Yel
5x7 matrix
|
|
512
2K
2K
|
4-bit
dual CPU
CMOS
SC43177 &
SC43178
256kHz
S'-BASIC
|
MR44 (1.35v) x 4
|
CE-121
CE-122
|
$229
1980
|
|
PC-1245
|
First in the PC-124x/125x series
70 x 135 x 10 mm, 115g
PC-1245 Manual
|
1 x 16
|
24K
|
2K
|
8-bit
CMOS
SC61860
S'-BASIC
|
2 x CR2032
|
11-pin
|
|
|
PC-1246
PC-1247
|
70 x 135 x 11 mm
Also sold as Radio Shack PC-8
|
1 x 16
|
16K
|
2K
4K
|
4-bit
CMOS
SC61720D03
1 MHz
S'-BASIC
|
2 x CR2032
|
11-pin
|
1982
|
|
PC-1246S
PC-1248
|
Case is black-plastic membrane.
70 x 135 x 11 mm
Preceded by PC-1140/1150
Instruction Manual
|
1 x 16
|
16K
|
2K
8K
|
4-bit
CMOS
SC61720D15
1 MHz
S'-BASIC
|
2 x CR2032
|
11-pin
|
1995
|
|
PC-1250
PC-1250A
PC-1251
PC-1251H
PC-1255
|
70 x 135 x 10 mm, 115g
PC-1250 also sold by Radio Shack as PC-3
PC-1251 Manual
|
1 x 24
|
24K
Memory Map*
|
2K
4K
4K
10K
10K
|
8-bit
CMOS
SC61860
ESR-H
576 KHz
S'-BASIC
|
2 x CR2032
|
11-pin
CE-123P
CE-124
CE-125P
CE-126P
|
145.00
1983
|
|
PC-1252
PC-1252H
PC-1253
|
Run-time version with 8 function keys
and number pad. 70 x 135 x 10 mm
|
1 x 24
|
24K
|
4K
10K
HS (8K)
|
8-bit
CMOS
SC61860A04
576 KHz
S'-BASIC
|
2 x CR2032
|
11-pin
|
1984
|
|
PC-1260
PC-1261
PC-1262
|
PC-1262 shown
PC-1260/1 have different color scheme
70 x 135 x 10 mm
|
2 x 24
|
40K
Memory map *
|
4K
10K
10K
|
8-bit
CMOS
SC61860
S-BASIC
|
2 x CR2032
|
11-pin
|
209.00
(1991)
|
|
PC-1270
|
Run-time calculator with 8 function keys
Half-size RAM card slot in back
70 x 135 x 10 mm
|
1 x 16
|
24K
|
HS
2 - 16K RAM
32 - 512K Flash
|
4-bit
CMOS
SC61720D16
1 MHz
S'-BASIC
|
2 x CR2032
|
11-pin
|
84.00
(2001)
|
| PC-1280 |
135 x 71 x 19 mm (closed)
135 x 141 x 10 mm (open) |
2 x 24 |
136K |
8K +
HS
(32K) |
8-bit
CMOS
SC61860
768 KHz
S-BASIC |
2 x CR2032 |
11-pin |
(1988) |
| PC-1285 |
run-time version of PC-1280
|
2 x 24 |
136K |
HS
(32K) |
8-bit
CMOS
SC61860A38
768 KHz
S-BASIC |
2 x CR2032 |
11-pin |
(1988) |
| PC-1350 |
One full-size RAM card slot in back.
182 x 72 x 16 mm |
4 x 24
graphics
150 x 32 |
40K |
5K +
FS
(16K) |
8-bit
CMOS
SC61860
S-BASIC |
2 x CR2032 |
11-pin &
15-pin SIO |
(1987?) |
| PC-1360 |
See PC-1350 photo.
Two half-size RAM card slots in back
72 x 182 x 16 mm |
4 x 24
graphics
150 x 32 |
136K |
2 x HS
(2 x 32K) |
8-bit
CMOS
SC61860
768 KHz
S-BASIC |
2 x CR2032 |
11-pin &
15-pin SIO |
249.00
(1991) |
| PC-1365 |
Number pad, 8 function, Yes, No & Enter keys (run-time version of PC-1360).
72 x 182 x 16 mm |
4 x 24
graphics
150 x 32 |
136K |
2 x HS
(2 x 32K) |
8-bit
CMOS
SC61860
768 KHz
S-BASIC |
2 x CR2032 |
11-pin &
15-pin SIO |
249.00
(1991) |
PC-1401
PC-1402
EL-5500II |
Earlier version of PC-1421 without the business/financial functions
Qwerty keyboard
72 x 170 x 10 mm |
1 x 16 |
40K |
4K
10K
4K |
8-bit
CMOS
SC61860
576 KHz
S-BASIC |
2 x CR2032 |
11-pin |
1984 |
PC-1403
PC-1403H
EL-5500III |
qwerty keyboard, scientific functions built in
72 x 170 x 10 mm |
1 x 24 |
720K |
8K
32K
32K |
8-bit
CMOS
SC61860A31
768 KHz
S-BASIC |
2 x CR2032 |
11-pin |
1987 |
PC-1421
EL-5510 |
Business / Financial Calculator
with special financial function keys
derived from PC-1401
72 x 170 x 10 mm, 150g |
1 x 16 |
40K |
4K |
8-bit
CMOS
SC61860A12
768 KHz
S-BASIC |
2 x CR2032 |
11-pin |
1985 |
PC-1430
PC-1431
EL-5400 |
Similar to PC-1450 below
qwerty keyboard
72 x 170 x 10 mm
Sequel to PC-1401 |
1 x 16 |
18K |
2K
4K |
4-bit
CMOS
S-BASIC |
2 x CR2032 |
11-pin |
|
| PC-1445 |
See PC-1450 Photo, sequel to PC-1401 |
1 x 24 |
|
|
8-bit
CMOS |
2 x CR2032 |
|
|
PC-1450
PC-1460
EL-5520 |
Scientific computer but no financial functions,
sequel to EL-5500/EL-5500II
RAM card slot in back
(fits full and half-size RAM cards)
72 x 182 x 16 mm
Operation Manual |
1 x 16 |
40K |
0K +
HS/FS
(32K) |
8-bit
CMOS
SC61860
768 KHz
S-BASIC |
2 x CR2032 |
11-pin &
15-pin SIO |
1985 |
| PC-1475 |
Derived from PC-1450 with some PC-1403 features |
2 x 24 |
|
|
|
|
|
PC-1500
PC-1500A/
PC-1501 |
86 x 195 x 26mm, 375g
Tandy sold the PC-1500 with a slightly different keyboard as the PC-2
The PC-1500A and PC-1501 are identical units |
1 x 26 col
graphics
7 x 156 |
16K |
3.5K
8.5K
8.5K
X5 on bottom (16K) |
8-bit CMOS
LH5801 (Z80)
2.6 MHz
1500-BASIC |
4 x "AA"
6 vdc |
40-pin
CE-150
CE-158 (RS-232C) |
$279
Jan 1982 |
| PC-1600 |
Successor to the PC-1500
86 x 195 x 25 mm, 390 g |
4 x 26 cols
5 x 7 char
156 x 32 pixels |
96K |
12 K +
2 X6 |
SC7852 (Z80A)
8-bit CMOS
3.58 MHz
1500-BASIC |
4 x "AA"
6 vdc |
|
489.00
(1991) |
| PC-1605 |
Same as PC-1600 but with no qwerty keyboard.
See PC-1252 photo.
86 x 195 x 25 mm, 390 g |
4 x 26 cols
5 x 7 char
156 x 32 pixels |
96K |
12 K +
2 X6 |
SC7852 (Z80A)
8-bit CMOS
3.58 MHz
1500-BASIC |
4 x "AA"
6 vdc |
|
|
| PC-2500 |
Integral color printer and full-size qwerty keyboard.
Based on the PC-1350.
210 x 297 x 46 mm, 1300 g |
4 x 24 cols
32 x 150 pixels |
72K |
5K +
FS (8 or 16K) |
8-bit CMOS
SC61860
S-BASIC |
2 x CR2032
AC Adapter |
|
1985 |
PC-E500/
PC-E500S |
32K RAM, half-size RAM cart slot in back
Scientific keyboard with many scientific routines
105 x 200 x 19 mm, 265 g
|
4 x 40 cols
32 x 240 pixels |
256K |
32K +
HS
(512K) |
8-bit
CMOS
SC62015B01
ESR-L
2.3 MHz
S-BASIC |
4 x "AAA"
1 x CR2016 |
11-pin &
15-pin SIO |
(1990?) |
| PC-E220 |
Similar to PC-E500
100 x 215 x 18 mm, 300 g |
4 x 24
graphics
|
128K |
32K |
8-bit
CMOS
Z80A
|
4 x "AAA"
1 x CR2016 |
11-pin &
15-pin SIO |
|
| PC-V510 |
Run-time calculator, descendent of PC-V550 |
8 x 16
graphics
96 x 64 |
128K |
256K |
8-bit
CMOS
ESR-Q
2.3 MHz
S-BASIC |
2 x CR2032
1 x CR2016 |
15-pin
SIO
(miniature) |
1998 |
| PC-V550 |
Run-time calculator, number pad, 8 function keys, Yes, No, Menu, Calc, & Enter keys.
Slot in back for half-size RAM card (8K - 256K)
155 x 78 x 13 mm |
8 x 16
graphics
96 x 64 |
256K |
32K
128K
256K
+
HS
(256K) |
8-bit
CMOS
ESR-Q
2.3 MHz
S-BASIC |
2 x CR2032
1 x CR2016 |
15-pin SIO
CE-VP10
(cradle) |
265.00
(1995) |
Dimensions are H x W x D in mm
* Memory maps by Yagshi
| Languages |
The very first pocket computers (PC-1201) just memorized key presses and stored the sequence in memory. See sample PC-1201 program.
Next (EL-5100) came the Algebraic Expression Reserve (AER) mode which allowed you to enter an expression and the calculator would evaluate it. The result could be stored in a memory and recalled.
With the PC-1210/11, Sharp introduced a simplified BASIC language (known as S-BASIC) to their pocket computers. There were many variations of the S'-BASIC and S-BASIC versions, with later versions being supersets of the early ones.
S'-BASIC (S-prime) was the initial BASIC. It appeared first in the PC-1210/PC-1211 machines. It uses a very efficient single-byte tokenizing system which was able to put every BASIC statement into a single byte. There was no ability for upper/lower case letters.
S-BASIC appeared in the PC-1260, PC-1350 and PC-1401 (EL-5500II) machines. It uses a two-byte tokenizing system and has quite a few more statements than S'-BASIC. Programs written in S'-BASIC can generally (but not always) be transferred to machines that use S-BASIC although some minor tweaking of the program might be required.
The PC-1500/PC-1600 are Z80-based machines and used a different version of BASIC.
|
Early Organizers & Tablets
|
Model
|
Description
|
Display
|
ROM
|
RAM
|
CPU/
Lang
|
Power
|
Interface
|
Price/
Year
|
|
OZ/ZQ-7000
OZ/ZQ-7200
|
Shown with OZ-707 Card inserted
Organizer with telephone, schedule,
calendar, world clock
155 x 184 x 11 mm (open)
155 x 90 x 20 mm (closed)
245g
|
8 row x 16 col
5 row x 7 char
or
4 x 12 col
8 x 16 char
64 x 96 pixels
LCD
|
|
32K
64K
|
8-bit CMOS
32 kHz
C
BASIC w/Expansion Cards
|
CR2032 x 4
CR2032 x 1 (backup)
CE-76BC
|
4-pin
15-pin SIO
CE-50P
|
1988
|
|
OZ/ZQ-8000
OZ/ZQ-8200
|
Organizer with telephone, schedule,
calendar, world clock
194 x 179 x 11 mm (open)
97 x 179 x 20 mm (closed)
290 g
|
8 row x 40 col
6 x 8 char
or
4 row x 30 col
8 x 16 char
64 x 240 pixels
LCD
|
|
64K
128K
|
8-bit CMOS
32 kHz
C
BASIC w/Expansion Cards
|
CR2032 x 4
CR2032 x 1 (backup)
CE-76BC
|
4-pin
15-pin SIO
CE-50P
|
1990
|
|
OZ/IQ-707
|
Scientific Computer Card with BASIC
86 x 54 x 2 mm, 18 g
|
n/a
|
128 K
|
32 K
|
BASIC
|
n/a
|
Similar to PC-Card but not compatible
|
1988
|
|
OZ/IQ-770
|
BASIC Program Card
with 20 function keys
86 x 54 x 2 mm, 18 g
|
n/a
|
?
|
64K
|
BASIC
|
CR2016 x 1
|
Similar to PC-Card but not compatible
|
1988
|
|
OZ/IQ-775
OZ/IQ-776
|
ROM/RAM
expansion card
with 20 function keys
86 x 54 x 4 mm
|
n/a
|
64K
128K
|
32K
|
|
CR2016 x 1
|
Similar to PC-Card but not compatible
Requires CE-170 to program EPROM in card
|
1988
|
|
OZ/IQ-780
|
ROM expansion card
86 x 54 x 2 mm, 18 g
|
n/a
|
32K
|
0
|
|
n/a
|
Similar to PC-Card but not compatible
|
1988
|
|
OZ/IQ-870
OZ/IQ-871
|
BASIC Card with RAM
86 x 54 x 2 mm, 18 g
|
n/a
|
|
32K
128K
|
BASIC
|
CR2016 x 1
|
Similar to PC-Card but not compatible
|
1988
|
|
OZ/IQ-8B03
|
Scientific Computer Card with BASIC
86 x 54 x 2 mm, 18 g
|
n/a
|
256 K
|
32K
|
BASIC
|
CR2016 x 1
|
Similar to PC-Card but not compatible
|
1988
|
|
PI-7000
PI-7100
|

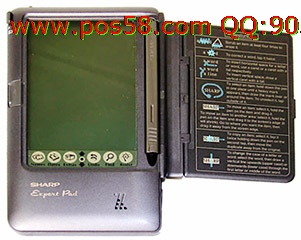

Sharp Expert Pad
Newton (licensed from Apple)
182 x 112 x 28mm (open)
430g
|
336 x 240
B&W LCD
|
4 Meg
|
640K
|
ARM 610
32-bit Risc
20 MHz
|
AAA x 4
CR2032 x 1
1.4w
EA-46E
|
RS-422
230Kbps
8-pin mini-DIN
IR 9600 bps
PCMCIA Card Type 2
|
1993
|
| Level Converters |
Level Converters change the 5 volt TTL logic levels to a RS-232 +/- 12v or RS-422 standard. They are used to connect the calculators to a standard ports.
To upload a BASIC program from the PC-1360 or other calculator with a 15-pin SIO connector to a PC, you need a level converter and this Upload program. Run the program with no arguments (i.e., just type Upload.exe) to get a help screen.
This is a DOS program and can be run from a DOS prompt in Win98 or earlier. It also works in a command window with Windows 2000/SP5, but has not been tested with other versions of the NT/2K/XP family.
|
| Model |
Description |
Connectors |
Power
source |
Price/
Year |
Pocket
Computer
Models |
CE-130T
CE-131T |
25-pin connector is mounted in a small box with a 12-inch cable to the 15-pin connector
CE-131T requires a null-modem adapter
CE-130T Manual
CE-131T Manual |
15-pin SIO &
25-pin (female) |
Rechargeable batteries.
EA-11E
AC Adapter (included) |
|
All with 15-pin SIO |
| CE-132T |
5-foot cable with level converter built into the 25-pin connector housing
Must be plugged in with the AC adapter to work
CE-132T Manual |
15-pin SIO &
25-pin (female) |
EA-11E
AC Adapter (included) |
|
All with 15-pin SIO |
| CE-133T |
5-foot cable with level converter built into the 15-pin SIO connector
CE-133T Manual |
15-pin SIO &
25-pin (female) |
RS-232 |
|
All with 15-pin SIO |
| CE-135T |
5-foot cable with level converter built into the 15-pin SIO connector |
15-pin SIO &
8-pin mini DIN for Apple |
RS-422 |
|
All with 15-pin SIO |
| CE-136T |
|
9-pin & 25-pin cable |
RS-232 |
|
All with 15-pin SIO? |
| CE-137T |
Small (2" x 2") unit
No cable come with this unit)
CE-137T Manual |
15-pin SIO &
9-pin (male) |
RS-232 |
|
All with 15-pin SIO |
| CE-140T |
5-foot cable with level converter built into the 15-pin SO connector |
15-pin SIO &
25-pin (female) |
RS-232 |
|
All with 15-pin SIO |
| CE-150TS |
RS-232C Level Converter
Small (2" x 2") unit.
Comes with 9-pin to 9-pin/25-pin cable
CE-150TS Manual |
15-pin SIO (mini) &
9-pin (male) |
RS-232 |
|
PA-95xx
PA-9600
PA-9700
PI-3000
PV-BR1
PV-F1 |
| CE-158 |
Centronics Parallel/RS-232 Interface
115 x 86 x 50 mm, 435g
CE-158 Manual |
60-pin for PC-1500,
25-pin (male) & 25-pin (female)
EA-158C parallel interface cable (optional) |
Rechargeable
NiCd batteries (4.8v @ 500mAh)
EA-21A
AC Adapter
(included) |
1983 |
PC-1500 Series, PC-1600, PC-1600K |
| CE-1602T |
Connect CE-1600L Optical fiber cable to RS232 |
Optical cable
& 25-pin |
|
|
PC-1600 |
| CE-T801 |
Cable |
11-pin Sharp &
9-pin (male) |
11-pin |
|
PC-E220 |
| SH-PC |
6-foot cable with level converter built into the 15-pin SIO connector
(not made by Sharp) |
15-pin SIO &
9-pin (male) |
RS-232 |
46.00
(1999) |
All with 15-pin SIO |
Tandy
26-3612 |
RS-232C level converter made by Tandy/Radio Shack for the PC-2 |
60-pin for PC-2 &
25-pin RS-232C |
RS-232 |
(1999) |
Radio Shack PC-2 |
Cables
| Model |
Description |
Connectors |
Price/
Year |
Pocket
Computer
Models |
| CE-200L |
Data interchange cable |
4-pin |
1988 |
IQ/OZ-7000 |
| CE-516L |
Cable to connect CE-515P Printer |
15-pin SIO
round connector for CE-515P |
|
CE-515P |
| CE-1600L |
Optical fiber cable |
Optical |
|
PC-1600 |
| CE-1601L |
PC-1600 to PC (5') |
15-pin SIO &
25-pin |
57.00
(1993) |
PC-1600 |
| CE-1602L |
PC-1600 to Modem |
15-pin SIO &
25-pin |
|
PC-1600 |
| CE-1603L |
PC-1600 to PC-7000, IBM PC |
15-pin SIO &
25-pin |
|
PC-1600 |
CE-1604L
CE-1605L |
PC-1600 to PC Cable (5'), (1605L has only the 15-pin SIO connector |
15-pin SIO &
25-pin (female) |
57.00
(1993) |
PC-1600 |
EA-128C
EA-129C |
Connects two pocket computers to transfer programs and/or data |
11-pin &
11-pin
|
32.00
(1998) |
Any with 11-pin Sharp connector |
| EA-158 |
Data interchange cable |
25-pin (female) & 25-pin (male) |
1983 |
CE-158 |
| Memory Cards |
Memory cards are CMOS RAM or EPROM, and fit the indicated machines.
|
| Model |
Description |
Price/
Year |
Card size
(see key below) |
| CE-151 |
4K RAM card |
|
X5 |
| CE-155 |
8K RAM card |
|
X5 |
| CE-157 |
4K RAM card
with battery for data backup (1 x CR-2032) |
|
X5 |
| CE-159 |
8K RAM card
Read-only switch to simulate ROM
Can be configured as 2K, 4K or 8K |
54.00
(1991) |
X5 |
| CE-160 |
16K RAM card |
|
X5 |
| CE-161 |
16K RAM card
with battery for data backup (1 x CR-2032) |
84.00
(1991) |
X5 |
| CE-163 |
32K RAM card
Programatically switched between 2 16K banks
Read-only switch on card to simulate ROM
48 x 41 x 9mm,
with battery for data backup (1 x CR-2032) |
120.00
(1991) |
X5 |
| CE-201M |
8K RAM card
54 x 86 x 3 mm, 36 g |
54.00
(1993) |
FS |
| CE-202M |
16K RAM card
54 x 86 x 3 mm, 36 g |
84.00
(1991) |
FS |
| CE-203M |
32K RAM card
54 x 86 x 3 mm, 36 g |
125.00
(1991) |
FS |
| CE-210M |
2K RAM card
See CE-212M photo |
35.00
(1989) |
HS |
| CE-211M |
4K RAM card
See CE-212M photo |
45.00
(1991) |
HS |
| CE-212M |
8K RAM card
42 x 54 x 3 mm |
65.00
(1998) |
HS |
| CE-2H16M |
16K RAM card
See CE-212M photo |
84.00
(1998) |
HS |
| CE-2H32M |
32K RAM card
See CE-212M photo |
125.00
(1991) |
HS |
| CE-2H64M |
64K RAM card
See CE-212M photo |
197.00
(1991) |
HS |
| CE-1600M |
32K card
41 x 43 x 9 mm |
179.00
(1993) |
X6 |
| CE-1620M |
32K EPROM module (requires CE-1601E adapter to connect to a standard EPROM programmer). Used 27C256 EPROM. 41 x 43 x 9 mm |
179.00
(1993) |
X6 |
| HS: Half-size RAM Card; FS: Full-size RAM Card (e.g., CE-201M, CE-202M); X5: PC-1500; X6: PC-1600 Card |
Printers & Interfaces
|
Model
|
Description
|
Connectors
|
Price/
Year
|
Chars
/line
|
Pocket
Computer
Models
|
|
CE-50P
|
 Printer with graphics capability
Cassette interface
EA-1250P thermal paper 58mm wide
Requires 4 x AA batteries to print highlighted (reverse) characters
|
4-pin
EA-23E
|
1988
|
24
|
EL-9000
IQ/OZ-7000
|
|
CE-120P
|
Printer & cassette interface
Thermal
|
11-pin
|
1988
|
24
|
PC-1280
PC-1285
|
|
CE-121
|
Cassette interface only
|
11-pin
EA-11E
|
1979
|
|
PC-1211
|
|
CE-122
|
Printer & cassette interface (shown with PC-1211)
Uses EA-800R ribbon
|
11-pin
EA-11E
|
1981
|
16
|
PC-1211
|
|
CE-123P
|
Thermal printer &
cassette interface
EA-1250P paper
198 x 156 x 34 mm
|
11-pin
EA-23E
|
184.00
(2001)
|
24
|
PC-125x
family
|
|
CE-124
|
Cassette interface only
|
11-pin
|
|
|
Any with 11-pin Sharp connector
|
|
CE-125
|
 Thermal printer with
Micro-Cassette
tape recorder
(Shown with PC-1250 Pocket Computer)
CE-125 Manual
|
11-pin
EA-23E
|
219.00
(1991)
|
24
|
PC-125x/
PC-124x
family
|
|
CE-126P
|
Thermal printer & cassette interface
140 x 116 x 23 mm
|
11-pin
EA-23E
|
150.00
1995
|
24
|
Any with 11-pin Sharp connector
|
|
CE-127R
|
Micro-cassette tape recorder
|
|
|
|
Any with 11-pin Sharp connector
|
|
CE-129P
|
Thermal printer & cassette interface
(fits wider machines,
otherwise same as CE-123P)
EA-1250P roll paper 58mm wide
198 x 156 x 34 mm
|
11-pin
EA-23E
|
|
24
|
EL-5500
PC-1401/EL5500II
PC-1402
PC-1421/EL-5510
PC-1430/EL-5400
|
|
CE-140P
|
4-color graphics printer
Up to 80 characters/line
185 x 256 x 42 mm, 860g
EA-600 Ink Cartridge
EA-515P Paper
Operation Manual
|
15-pin SIO
EA-150, 5.2w
|
|
Up to
80
|
PC-1360
PC-1450
|
|
CE-150
|
4-color graphic printer & cassette interface
(shown with PC-1500)
115 x 330 x 50 mm, 900g
Pens: EA-850B/EA-850C / paper: EA-1500P
|
|
289.00
(1991)
|
36
max
|
PC-1500
|
|
CE-162E
|
Parallel & cassette tape interface
1 x AA battery
90 x 142 x 26 mm, 400 g
|
Centronics 36
Audio
|
|
|
PC-1500/A
PC-1600/K
|
|
CE-1600P
|
4-Color X-Y plotter printer
& cassette interface
210 mm wide roll (EA-4AR1) (A4),
216 mm wide roll (EA-1LR1) (U.S. Letter),
A4/Letter size cut sheets
Pens: EA-850B/EA-850C
222 x 320 x 46 mm, 1.6kg
Operation Manual
|
EA-160
|
429.00
(1991)
|
160
|
PC-1600
CE-1600F
|
|
CE-515P/
CE-516P
|
4-Color X/Y plotter printer,
EA-515P paper 114 mm wide,
330 x 160 x 75 mm
|
15-pin SIO
|
|
80+
|
Any with SIO/
parallel
|
|
CE-VP10
|
Thermal graphics printer for PC-V550 (fits around calculator).
16 x 255 dots per row, 32 half-size chars. Paper width 58 mm. Optional modem built into printer base.
99 x 266 x 38 mm
|
15-pin SIO
EA-53A
|
585.00
(1998)
|
|
PC-V550
|
Other accessories
|
Model
|
Description
|
Connectors
|
Price/
Year
|
Other
|
Pocket
Computer
Models
|
|
CE-76BC
|
Battery case
Output: 6.4vdc 80ma max
65 x 100 x 16 mm
|
|
50.00
(1996)
|
6 x AAA
|
PC-V550
|
|
CE-140F
|
2.5 inch Pocket Floppy Drive, 64K per side,
512 bytes/sector, 8 sectors/track,
48 TPI 16 Tracks, 270 rpm GCR 4/5
96 x 122 x 39 mm
|
11-pin
|
299.00
(1993)
|
Power:
5 x AA
CE-1650F
discs
|
S-BASICModels
with 11-pin
|
|
CE-152
|
Cassette recorder (for data)
(requires cassette interface)
|
Audio
|
|
|
Any
|
|
CE-153
|
Software Board
keyboard extension with 140 function keys
174 x 240 x 13mm, 640g
|
|
|
|
PC-1500
|
|
CE-170
|
EPROM Card Adapter
Used to program EPROM Accessory Cards
for Early Organizers
65 x 66 x 21 mm, 40 g
|
|
|
|
OZ/IQ-775
OZ/IQ-776
|
|
EA-515P
|
Tube of three rolls of paper
114mm wide, diameter 25mm
|
|
|
|
CE-515P
PC-2500
?
|
|
EA-850B
EA-850C
EA-852C
|
EA-850B: 4 black ink pens,
EA-850C/EA-852C: 4 color ink pens
(black, blue, green, red)
 (EA-852C for transparent media)
|
|
|
|
CE-150
CE-1600P
|
|
EA-1250P
|
Box of 5 rolls of thermal paper
58 mm wide, diameter 18 mm
|
|
|
|
CE-50P
CE-123P
CE-125P
CE-126P
CE-129P
|
|
EA-1500P
|
5 rolls of paper
58 mm wide
|
|
|
|
CE-150
|
|
CE-1600F
|
2.5" Floppy disc drive modular unit
fits within CE-1600P package.
See CE-140F for specs
|
|
299.00
(1993)
|
|
PC-1600
|
|
CE-1601N
|
Bar-code pen reader
JAN, EAN, UPC (Code A), NW7 (Standard code)
Resolution: 0.18mm
Speed: 7.5 to 75 cm/sec
144 x 34 x 20 mm, 70g
|
|
c. 1985
|
|
PC-1600
|
|
CE-1650F
|
10 2.5" Floppy discs for CE-140F/CE-1600F
64KB per side, 15g.
|
|
115.00
(1993)
|
|
CE-140F
CE-1600F
|
|
EA-7100P
|
Tube of 5 rolls of paper
58 mm wide, diameter 25 mm
|
|
|
|
|
AC Adapters/Chargers
| Model |
Description |
Plug |
Input |
Output (vDC) |
Models |
| CA-160CA |
Car adapter with standard cigarette lighter connector.
52 x 76 x 46 mm |
5.5 mm
 |
12-24 vDC |
8.4 @ 1000 ma |
|
| EA-11E |
See EA-23E photo
Also Radio Shack 26-3505 |
5.5 mm
|
120 @ 2.5 w |
6.0 @ 200 ma |
CE-211 |
| EA-12E |
See EA-23E |
5.5 mm
|
|
6.0 @ 200 ma |
|
| EA-14A |
See EA-23E |
5.5 mm
|
|
6.0 @ 150 ma |
|
| EA-17E |
See EA-23E |
5.5 mm
|
|
2.5 @ 150 ma |
|
| EA-21A |
See EA-23E |
5.5 mm
|
110/220 @ 8.0w |
8.2vDC @ 350 ma |
|
| EA-23E |
 |
5.5 mm
|
120 @ 6 w |
8.5 @ 350 ma |
Many printers |
| EA-46E |
|
5.5 mm
|
120/240 @ 6w |
6v |
PI-7000
Newton |
| EA-51A |
See EA-23E |
5.5 mm
|
120 @ 3 w |
6.0 @ 200 ma |
|
| EA-53A |
See EA-23E |
5.5 mm
|
120 @ 10 w |
7.0 @ 700 ma |
CE-VP10 |
| EA-57A |
|
|
120 @ 14w |
|
CE-515P
CE-516P |
| EA-150 |
AC Adapter / Charger |
5.5 mm
|
120 @ 12 w |
9.0 @ 500 ma |
CE-150 |
| EA-160 |
Charger |
|
120 @ 6 w |
6.0 |
CE-1600P |
15-Pin SIO Connector
|
The 15-pin SIO (serial input-output) connector is a standard one Sharp that has used for some time--most of their pocket computers use this connector for serial input/output.
It provides TTL-level serial data to/from the pocket computer. A Level Converter is required to interface with standard RS-232 serial communications. (The new "mini" version of this connector is much smaller, but has the same pin out.)
|
| Pin |
Name |
Symbol |
I/O |
Desc |
| 1 |
Frame ground |
FG |
|
|
| 2 |
Tx data |
SD |
O |
Send data |
| 3 |
Rx data |
RD |
I |
Receive data |
| 4 |
Request data |
RS |
O |
|
| 5 |
Clear to send |
CS |
I |
|
| 7 |
Signal ground |
SG |
|
Also power supply ground |
| 8 |
Data carrier detect |
CD |
I |
|
| 10 |
|
VC |
|
Power supply (+6 vdc) |
| 11 |
Receive ready |
RR |
O |
|
| 13 |
|
VC |
|
Power supply (+6 vdc) |
| 14 |
Data terminal ready |
ER |
O |
|
11-Pin Connector
|
The 11-pin connector is a proprietary Sharp interface used to connect printers, cassette interfaces, and pocket floppy drives. It can also be used to transfer programs between some pocket computers with the EA-129C cable.
|
| Pin |
Signal Name
(Calculator Side) |
Signal Name
(Accessory Side) |
Desc |
| 1 |
MT 2 |
MT out 2 |
(not used on some models) |
| 2 |
Ground |
Ground |
|
| 3 |
VCC |
VCC |
Power |
| 4 |
Busy |
Busy |
|
| 5 |
Data out |
Data in |
Data out to printer (bit by bit) |
| 6 |
X out |
MT in |
Data to the cassette recorder |
| 7 |
X in |
MT out 1 |
Data from the cassette recorder |
| 8 |
Data in |
Data out |
Data in (bit by bit) |
| 9 |
ACK |
ACK |
Enables CPU to read data bit by bit |
| 10 |
IO 2 |
SEL 2 |
SEL 2 output from CPU |
| 11 |
IO 1 |
SEL 1 |
SEL 1 output from CPU |
9-Pin & 25-Pin Connectors
|
These are the standard Amphenol connectors commonly used for RS-232 serial communications. |
|
|
 |
[Next：Thermal graphics printer for PC-V550 (fits around]→
|
|
