PT721S

PT721S
Product name:PT721S
Item:PT721S
Details:

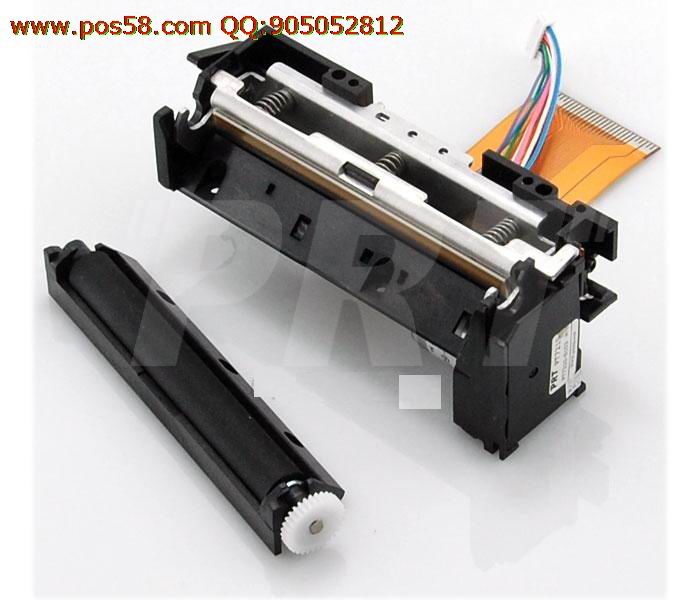

PT721S
thermal printer mechanism


Features :

• Seiko LTPV345 compatible
• Easy paper loading
• Support label paper and thick thermal paper printing
• 90° paper feeding

( thermal printer mechanism )




1. Low voltage supply

The voltage used to drive the thermal printer head is equal to the logic voltage, or is driven by a 5 V single power line, the range of operating voltage is 4.2V-8.5V, so four to six NI-Cd battries or Ni-MH batteries can also be used. Two li-ion batteries can be used.

  2. Compact and lightweight design

The mechanism is compact and light, dimensions: 93mm (width) * 34.5mm (depth) * 39.5mm (height)

3. Printing with high resolution
A high-density printer head of 8 dots/mm make the good printing quality

4. High speed printing

According to driving power and sensitivity of thermal paper, set different printing speed required. Printing speed is 85 mm/ s(max.)

5. Easy paper loading

Detachable rubber roller structure makes the paper loading easier

6. Low noise

Thermal line dot printing is used to guarantee low noise printing.

Specification

Printing method thermal dot line printing
Feed direction 90°
Dot structure 576 dots/line
Dot pitch 8 dots/mm
Printing width 72mm
Printing speed 45 mm/s (5V)
85 mm/s (7.2V)
85 mm/s (8.5V)
Paper width 80 mm
Paper thickness 60~135mm
Paper loading method easy paper loading
Character size 12*24,48 characters/line
24*24,28 characters/line
 8* 16,72 characters/line
16* 16,36 characters/line
Power supply Printer head 4.2V~ 8.5V, Average 1.8A (5V), 2.6A (7.2V), 2.8A (8.0V),max 2.1A (5V),3.0A (7.2V),3.3A (8.0V)
stepper motor 4.2V~ 8.5V,0.5A(max)
Logic voltage 3.0V~ 5.5V, 0.036A(max)
Dimensions (W×D×H) 93*34.5*39.5 mm
Weight 91g
Electric life Wear life more than 110,000,000 pulses (printing rate=12.5%)
more than 50km
Ambient condition Operating temperature 0°C~50°C
Operating humidity 20~85% RH
Storage temperature -20° C~60° C
Storage humidity 5~90% RH
Sensor TPH temperature thermistor
Paper end / head position photo interrupter
Application

 • ECR/financial POS
• Weighing scale
• Fire controller
• Medical devices
• Measuring device
