FTP-639MCL103

FTP-639MCL103

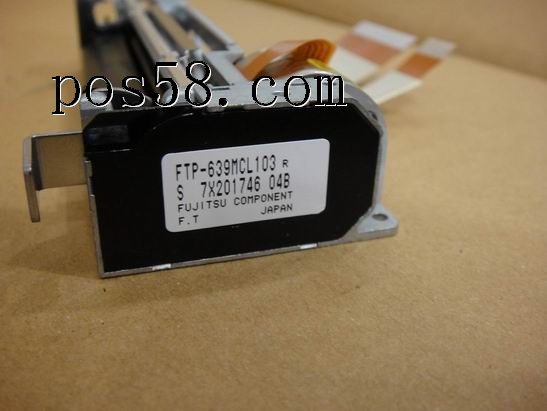

产品名称:FTP-639MCL103
产品编号:FTP-639MCL103/105/383#01/383#02
详细说明:
1
FTP-639MCL103/105/383#01/383#02
FTP-639MCL103/105/383#01/383#02
n OVERVIEW
The FTP-609MCL Series thermal printer (driven by 24VDC)
provides ultra-high speed printing (200mm/s) for 2-inch and 3-
inch wide paper.
This series is suitable for a variety of applications, such as POS/
ECR, kiosk terminals, ticket machines, label printers, banking
machines, measuring devices, medical equipment, etc.
n HIGHLIGHTS
• Ultra high speed printing
It can print at 200 mm/s (1600 dotlines/s) maximum by using
Fujitsu Components' unique head drive control.
• High resolution
8 dots/mm head provides clear print out.
• ELM (Easy Loading Mechanism) with lock type
Fujitsu Components' unique platen release mechanism allows
easy paper setting and easy head maintenance.
• Auto Cutter
Printer with auto cutter (full cut/ partial cut) is available. It can
be mounted on top of the mechanism.
• Multi-featuring diecast frame
By application of multi-featuring diecast frame, continous print
by function of heat-sink, high ESD stand by function of earth
frame and shock/vibration stand by function of solid frame are
valid.
• Compact size
Depth: 40.5mm, width: 82.2mm, height: 20.5mm for the 2-
inch model. The 3-inch model has a width of 104.2mm
• RoHS compliant
24V DRIVE, FTP-609 SERIES
ULTRA HIGH SPEED (200mm/s)
3" TYPE MECHANISM (Cutter option)
FTP-639MCL103
FTP-639MCL383
FTP-629DSL301
2
FTP-639MCL103/105/383#01/383#02
n PART NUMBERS
n GENERAL SPECIFICATIONS
Item Specifications
Part number FTP-639MCL103/105 FTP-639MCL383#01/#02
Printing method Thermal sensitive line dot method
Dot structure 576 dots/line
Dot pitch (horizontal) 0.125mm (8dots/mm) - Dot density
Dot pitch (vertical) 0.125mm (8dots/mm) - Line feed pitch
Effective printing area 72 mm
Number of columns ANK 48 columns/line (12 x 24 dot font) OCR 24 columns
Paper width 80mm +0/-1
Paper thickness 60 to 100μm (there may be exceptions)
Cutting type --- ELM full or partial
Printing speed FTP-629DCL/DSL series 80mm/sec. (640 dot lines/sec.) line mode
200mm/sec. (1600 dot lines/sec.) image mode
FTP-629DSL100 series
FTP-629DSL300 series
125mm/sec. (1000 dot lines/sec.) line mode
200mm/sec. (1600 dot lines/sec.) page mode
Character types Alphanumeric, Kana:
International:
JIS Kanji (Kanji CG
loaded board):
OCRI
OCRIII
OCRIV
Extended numeric
159 types
195 types
about 6,800 types
159 types
195 types
about 6,800 types
103 types
23 types
103 types
11 types
Character,
dimensions (WxH),
number of columns
24x12 dots, (3.0x1.5mm)
16x16 dots, (2.0x2.0mm)
24x24 dots, (3.0x3.0mm)
8x16 dots, (1.0x4.0mm)
48 columns: ANK
24 columns: ANK
72 columns: ANK
36 columns: ANK
24 columns, OCRI
24 columns, OCRIII
16 columns, OCRIV
24 columns, extended numeric
Interface standard Centronics / RS232C /USB Serial/USB
Name Part Number
Printer mechanism Detachable platen FTP-639MCL103 (with flex tail) FTP-639MCL105 (with adaptor board)
Mechanism with cutter Detachable platen FTP-639MCL383#01 (full cut)/
FTP-639MCL383#02 (partical cut)
-
LSI FTP-629CU301 -
Interface board Serial (RS232C) FTP-629DSL301 -
USB FTP-629DSL301 -
Thermal head cable extension - FTP-629Y001
Interface cable Serial FTP-629Y302 -
USB FTP-629Y301 -
Power supply cable FTP-629Y602 -
3
FTP-639MCL103/105/383#01/383#02
(Continued)
Item Specifications
Part number FTP-639MCL103/105 FTP-639MCL383#01/#02
Power supply For head 24 VDC ±5%, 1.9A (4A) (24V, 25% printing ratio)
For printer motor 24 VDC ±5% 1A maximum
For cutter motor --- 24 VDC ±5% 1A maximum
For logic 5 VDC ±5% 0.2A maximum
Dimension
W x D x H
Printer mechanism 104.2 x 40.2 x 20.5mm ---
Printer mechanism with cutter --- 112.5 x 70.3 x 37.4mm
Interface board 77 x 50 x 21.5mm
Weight Printer mechanism Approximately 125g ---
Printer mechanism with cutter --- Approximately 300g
Interface board Approximately 30g
Life Head Pulse durability: 100M pulse/dot (using Fujitsu's standard
driving method)
Wear resistance: 100km (at 12.5% print ratio)
Cutter --- 1,000,000 cuts minimum
Platen 5,000 times (open/close)
Environmental
conditions
Operating temperature -10ºC to +60ºC (guarantee) 0ºC to +50ºC (guarantee)
Operating humidity 20 to 85% RH (no condensation)
Storage temperature -40ºC to +70ºC -20ºC to +60ºC
Storage humidity 5 to 95% RH (no condensation)
Detection Head temperature By thermistor
Paper out/Mark detect By photointerruptor
Head release By slide switch
Recommended
thermal
sensitive paper
High sensitive paper TF50KS-E4 (Nippon paper)
Standard paper TF60KS-E2 (Nippon paper), FTP-030P0104 (80mm)
PD150R (Oji paper), FTP-030P0701 (80mm)
Medium life storage paper TF60KS-F1 (Nippon paper), FTP-030P0102 (80mm)
PD170R (Oji paper)
P220VBB-1 (Mitsubishi paper)
PD160R-N (Oji paper)
Long life storage paper AFP-235 (Mitsubishi paper)
TP50KJ-R (Nippon paper)
HA220AA (Nippon paper)
4
FTP-639MCL103/105/383#01/383#02
ITEM ITEM
1. Test printing 8. Cutter trouble detection
2. Paper-out detection 9. Motor power save
3. Paper near end detection 10. Mark detection
4. Head-up detection 11. MCU trouble detection
5. Abnormal temp. of thermal head detection 12. Power on/off sequence protection
6. Blown fuse detection 13. Motor protection
7. Abnormal voltage detection of head 14. Hardware timer
n DIMENSIONS
1. Printer mechanism without cutter
Unit: mm
Center of platen Platen open lever
(paper end sensor)
FTP-639MCL103
n FUNCTION
5
FTP-639MCL103/105/383#01/383#02
Unit: mm
FTP-639MCL383#01/#02
28.4 27.5
3 MAX
27.1
(47.2)
16.0
53.3
67.3
3.0
56.5 56.0
6.4
35.0
56û
8.5

37.4
47.6 at full cut
49.6 at partial cut
Center of paper
Center of platen
Paper end sensor
Platen open lever
Unit: mm
FTP-639MCL105 Center of paper
Platen open lever
Center of paten
Paper supply
(45°)
22° 18°
15.0
20.5
104.2±1
40.5 6.9
HEAD
MOTOR
39
40
12
2. Printer mechanism with cutter
6
FTP-639MCL103/105/383#01/383#02
n CONNECTOR PIN ASSIGNMENT OF PRINTER MECHANISM (FPC)
1. Thermal head, motor, sensor
* FPC type (FTP-639MCL103/383#01/383#02)
No 1 to 30: 52610-3071 (Molex), No 31 to 40: 52610-1071 (Molex)
* Cable extension type (FTP-639MCL105) LY20-DC40 (JAE)
2. Cutter (CN5)
With cutter type (FTP-639MCL3836#01/#02)
Connector type: B4B-PH-SM4-TB (J.S.T.) or equivalent
n INTERFACE COMMAND OPTIONS
Please refer to the FTP-629DSL301 series datasheet.
C 4M I
No. Signal I/O Contents No . Signal I/O Contents
1 SW1 - Cutter home position switch 2 SW2 O Cutter home position switch
3 M+ O utter motor drive - Cutter motor drive
No Signal I/O Contents No Signal I/O Contents
1 SW O Platen open switch 2 SW - Platen open switch
3 VH - Power for thermal head 4 VH - Power for thermal head
5 VH - Power for thermal head 6 VH - Power for thermal head
7 DI I Data in 8 STB3 I Print enable 3
9 STB4 I Print enable 4 10 VDD - Power for logic
11 TM - Head thermistor 12 GND - Head GND
13 GND - Head GND 14 GND - Head GND
15 GND - Head GND 16 GND - Head GND
17 GND - Head GND 19 GND - Head GND
19 GND - Head GND 20 GND - Head GND
121 TH - Thermistor 22 STB1 I Print enable 1
23 STB2 I Print enable 2 24 LAT I Print data latch
25 CLK I Clock 26 DO O Data out
27 VH - Power for thermal head 28 VH - Power for thermal head
29 VH - Power for thermal head 30 VH - Power for thermal head
31 NC - Not connected 32 TM O Motor temperature sensor
33 TM - Motor temperature sensor 34 MT A I/O Motor coil excitation /A
35 MT A I Motor coil excitation A 36 MT B I/O Motor coil excitation /B
37 MT B I Motor coil excitation B 38 PHK - Paper out sensor cathode
39 VSEN I Power for paper sensor 40 PHE O Paper out sensor emittor
