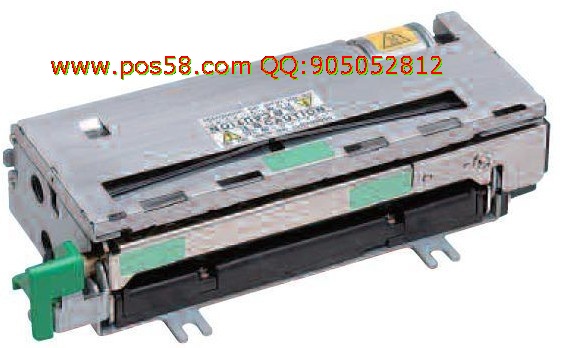

CAP9347F-C640-E pdf

CAP9347F-C640-E pdf
产品名称:CAP9347F-C640-E pdf
产品编号:CAP9347F-C640-E pdf
详细说明:

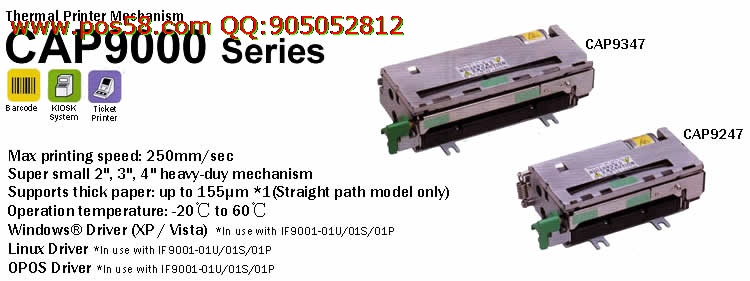

Model
CAP9247
CAP9347
CAP9447
Printing Method
Thermal line dot printing
Number of dots/line
448
640
832
Resolution(dots/mm)
8
Paper width(mm)
58/60
80/82.55
112
Printing width(mm)
54/56
76/80
104
Speed(mm/sec) max
250
Paper path
Curved/Straight
Detection Head temperature
By thermistor
Out of Paper detection
By photo interrupter
Mark position detection
By photo interrupter
Platen position detection
By mechanical switch
Cutter position detection
By mechanical switch
Power supply(V) Operation Voltage(Vdd)
4.75 to 5.25
Operation Voltage(Vp)
21.6 to 26.4
Peak current(A) Head
5.9 (26.4V/128 dots)
Motor
1.0
Cutting Method
Slide type
Paper thickness (µm)
57 to 155 *1
Cutting type
Full cut / Partial cut(Leave center point)
Operating time (sec/cycle) max
2
Cutting pitch (mm)min
10
Cut frequency (cut/min) max
30
Service life Pulse activation
150 million
Abrasion resistance(km)
150 *1
Autocutter (cut)
1 million
Operating temperature(°C)
-20 to 60
Dimensions(WxHxD mm)
89.5 x 50.0 x 30.0 *2
112.0 x 50.0 x 30.0*2
140.75 x 59.3 x 32.0*2
Mass(g)
Approx.240
Approx.290
Approx.390
*1 Use recommended thermal papers *2 Excluding protrusion
