产品展示

打印机芯组件LTP3245A-C384.pdf

打印机芯组件LTP3245A-C384.pdf
产品名称:打印机芯组件LTP3245A-C384.pdf
产品编号:LTP3245A-C384.pdf
详细说明:

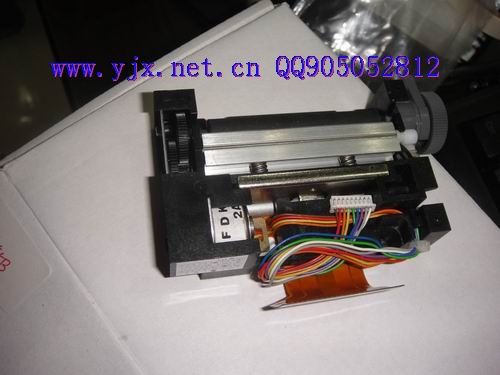

 LTP3245A-C384

LTP3000 Series

LTP3245
LTP3245
LTP3345
LTP3345
LTP3445
LTP3445





The LTP3000 Series thermal line printers combine a compact, lightweight battery-powered design with an array of advanced features. This series is the ideal thermal printing solution for any application where small size, speed, versatility and low-power consumption are critical. Aside from being efficient, economical and dependable, the LTP3000 Series printers feature 5 volt operation and a power-saving design that supports virtually any application requiring portable, battery-powered thermal printing.

Features

  • High speed (56.25mm/sec. attainable with LTP3445)
  • High resolution printing (8 dots/mm)
  • Low voltage operation
  • Accepts two-ply and label media
  • Head-up and paper-out sensors
  • High reliability
  • Quiet operation










Model
LTP3245 A/B
LTP3245 F/G
LTP3345
LTP3445
Print system Thermal line dot system
Head up / down detection Detection by mechanical switch
Paper detection Detection by photo interrupter
Dot resolution (dots / mm) 8
Dot configuration (dots / line) 384 384 384 384
Printing speed (mm /sec.) (Max.) 22.5 (180 dotlines / sec. 54.5 (437 dotlines / sec.) 45 (360 dotlines / sec.) during 7V drive 56.25 (450 dotlines / sec. During 8.5V drive 50 (400 dotlines / sec.) during 7.2V drive
Printing width / Paper width (mm) 48 / 58 72 / 80 104 / 112
Thermal head service life Anti-pulse characteristic 5 x 107pulses
Abration resistance 30 km 50 km
Operating voltage range (V) Logic 4.2 to 5.5 4.5 to 5.5
Head 4.2 to 6.0 4.2 to 7.0 4.2 to 7.0 4.2 to 8.5
Dimensions (W x D x H) (mm) 76.3 x 50 x 20 76 x 54 x 21 97 x 57 x 21 129 x 51 x 21
Weight (g) Approx. 80 Approx. 105 Approx. 115 Approx. 135
Technical Reference (Size:472KB) (Size:618KB) (Size:694KB) (Size:624KB)
