供应路桥收费专用打印机sp-322

供应路桥收费专用打印机sp-322
Product name:供应路桥收费专用打印机sp-322
Item:供应路桥收费专用打印机sp-322
Details:
供应路桥收费专用打印机sp-322



STAR SP322 Spocket Dot Matrix Printer

Small printer for 3.5 inches sprocket type paper. Ideal printer for applications, such as, Credit Authorization Terminal, and general pre-printed form printing



 Industry Famous Reliability

 High print speed: 3.2 lines/second

 Stepping motor provides fast paper feed (3 inches/second)

 Internal power supply

 Extended temperature range: 0°C - 50°C

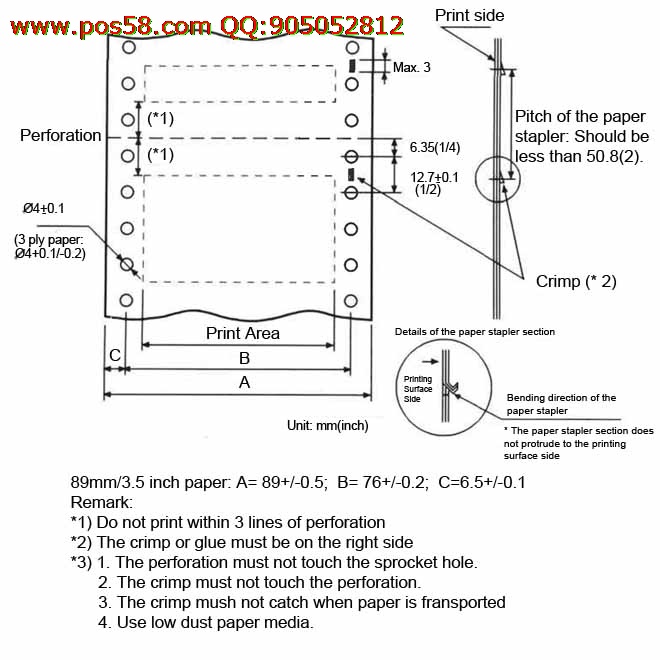

SP322 Paper Specification


Models  SP322S
Printer Method  9-pin serial impact dot matrix
Print direction  Bi-directional
Number of columns  40 (15CPI)
Character font  5 x 9  7 x 9
line spacing  1/6"  n/72"
Character size  15, 12, 8, 6 CPI
Print speed  3.2 lines / sec.
Print feed speed  Approx. 3 inches / sec.
Ribbon cassette  RC300B (black) : 1.6 million
Paper:
 Media
 Material

 Width

 Diameter

 Thickness
 Copies

 Sprocket fanfold
 Normal or carbonless paper

 3.5" (89mm)

 0.07mm to 0.010mm - single copy

 Three ply - Max 0.2mm
 Each paper should be 0.05mm to 0.08mm in thickness
Reliability:
MCBF
Print head

 8 million lines
 200 million lines
Operating conditions  0°C to 50°C, 10% to 90% RH (W/O condensation)
Storage conditions  -20°C to 70°C, 5% to 95% RH (W/O condensation)
Power supply  AC 100, 120, 220, 240V
Current Consumption  Max 60W (AVG 30W) in operation, 10W in idle
Paper Out Detector  Mechanical switch
Cash drawer driver  2 circuits (24V,max 1A), one compulsion input
Data buffer  Approx 4KB (selectable by DIP switch)
Interface  Serial (RS232C) or Parallel (RS422A or 20mA current loop option)
Dimensions (mm)  175 (W) X 303 (D) X 196 (H) (with paper holder)
Weight  Approx. 3.9Kg
