thermal head for SRP-350 plus SPR-350II thermal printer

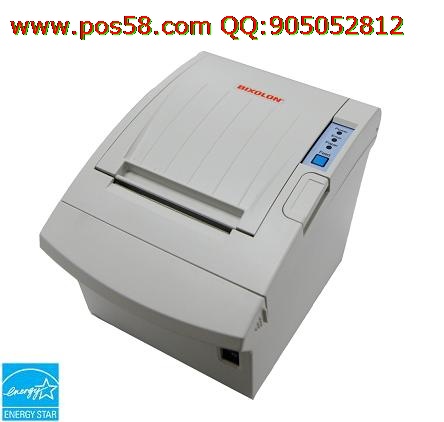

SRP-350plusII
Quick Specs
Width
80mm
Speed
250mm/sec
Roll Diameter
Max Ø 83mm
| ITEM |
TYPE |
| Print |
Printing Method |
Direct thermal |
| Printing Speed |
250mm/sec |
| Resolution |
180dpi |
| Font |
Character Set |
Alphanumeric Character : 95
Extended Character : 128 X 37 pages
International Character : 32 |
| Character Size |
Font A : 12 X 24 / Font B : 9 X 17 / Font C : 9 X 24
Korean : 24 X 24 / Chinese : 24 X 24 |
| Character per Line |
FontA:42/FontB:56/FontC:56,
Korean:21/Chinese:21 |
| Paper Spec |
Paper type |
Thermal paper |
| Paper Width |
80mm |
| Paper Roll Diameter |
Max Ø 83mm |
| Paper Supply Method |
Easy Paper Loading |
| Reliability |
MCBF |
70 million lines |
| Auto Cutter |
1.8 million cuts |
| TPH |
150 Km |
| Barcodes |
1D : EAN-13, EAN-8, Code 39, Code 93, Code 128, ITF, Coda Bar, UPC-A, UPC-E
2D : PDF417, QR Code |
| Emulation |
ESC/POS TM |
| Driver |
Windows,OPOS,JPOS,Linux CUPS(Linux kernel 2.4.18 and later), Mac Driver(Mac OS X 10.4/10.5/10.6) |
| Sensor |
Paper Near End Sensor, Paper End Sensor, Cover Open Sensor |
| Drawer Port |
2ports |
| Interface |
USB 2.0 on board / Serial(RS-232C) / Parallel (IEEE 1284) / Ethernet |
| Option |
Wall Mount |
RWM-350 |
| Language |
Buyer Language Support |
| Power Supply (Adapter) |
AC 100~240V / DC 24V, 2.5A |
| Dimensions (W*L*H) |
145 X 195 X 146 mm |
| Operating Temp |
0 ~ 45°C |
| Auto Cutter |
Type |
Guillotine |
|
