Products

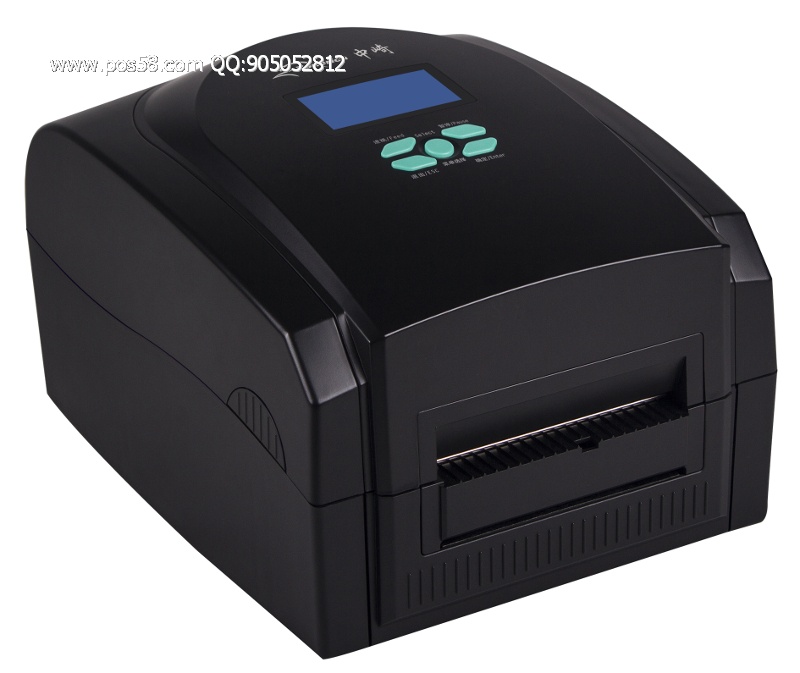

ZQ-F920 Thermal Label / Barcode / Sticker Printer

Product name：ZQ-F920 Thermal Label / Barcode / Sticker Printer

Item：ZQ-F920 Thermal Label / Barcode / Sticker Printer

Details：

PRODUCT NAME: L ABEL PRINTER

MODEL#: AB-F920

Zonerich label printer is with low cost, reliable design, ideal for retail, logistics, public service, etc. Ultra speed up to 250mm/s, high resolution produces high quality labels

HIGHLIGHTS

1. Speed up to 250mm/s

2. LCD display

3. 1D, 2D barcode are available

4. Reliable and low cost

APPICATION REFERENCE

- Ideal for

- Industrial supply chain

- Goods Labeling

- Transportation and logistics

- Retail

- Public service

SPECIFICATION

Print Methods	Thermal transfer or direct thermal
Resolution	203DPI
MAX Print Speed	MAX 250mm/s
Paper Type	Width:MAX14mm, MIN 25mm Length:12~2286mm Thickness:0.2mm Weight: MAX 240g/m2 MAX Diameter: Built-in roll paper max diameter 110mm, External roll paper max diameter 214mm Winding type: According to outward printing side Roll inner diameter:φ25.7±0.3mm Paper gap:0.2mm
Ribbon Type	Ribbon form: Winding drum Ribbon Width: MAX 110mm, MIN 40mm MAX Ribbon External Diameter:φ67mm
Character Size	A : 12x24, B : 9x17
Character Set	ANK, Chinese（GB2312）
Buffer Size	4MB
Barcode types	1D bar code, Code 39, Code 93, Code 128 UCC, Code 128, Subsets A, B, and C, Coda bar, Interleaved 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC with 2 or 5 digits add-on, MSI, PLESSEY, Postnet, China post, 2D bar code, Maxicode, PDF-417, DataMatrix, QR code, GS1 DataBar family (RSS)
Interface	USB, parallel
Power	INPUT:110-240V,50-60HZ; OUTPUT:DC24V...2A
Environmental	Operating temperature and humidity: －10－45℃; 35－85％RH
Dimension	L306mm x W228mm x H185mm
