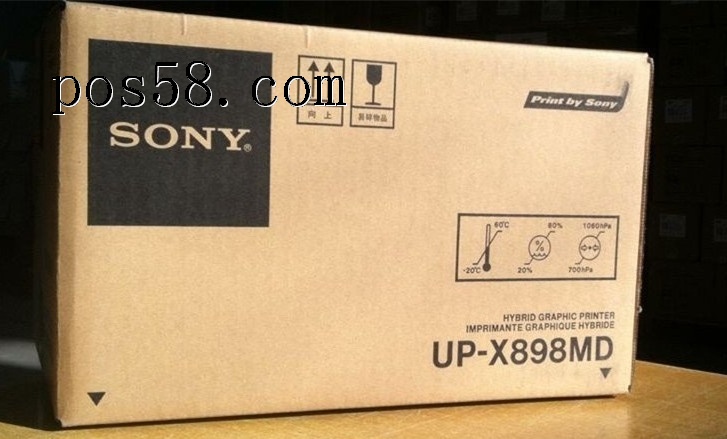

UP-X898MD black and white hybrid video graphic printer |
|
| Product name：UP-X898MD black and white hybrid video graphic printer |
| Item：索尼A6尺寸数字/视频图像打印机 UP-X898MD |
| Details： |
- Ideal for today’s advance ultrasound systems
- Unique built-in digital capture enables you to store images on a connected USB drive
- Sony’s IMAGEPORT™ interface is now incorporated into the UP-X898MD
- Print-----Store----Go
- 1.9 Second print speed
- User-friendly controls on front panel
- Uses same media as the UP-895 and UP-897 series printers
- High-quality, photo like images
|
General Specifications
|
Detail: |
| Connector |
Analog |
| Dimensions |
6 1/8 x 3 1/2 x 9 1/2 inches |
| Gradation |
True 256 gray balance |
| Interface |
Input connector: VIDEO IN (BNC type) NTSC or PAL composite video signals 1.0 Vp-p, 75 ohms (NTSC/PAL automatically discriminated) Output connector: VIDEO OUT (BNC type) Loop-through Remote connector: stereo mini jack
USB |
| Picture Memory |
10 Frames |
| Power Requirements |
100 to 240 V AC
50/60Hz
1.5A to 0.8A |
| Print Media |
UPP-110S/5,UPP-110HD, UPP-110HG |
| Print Speed |
Approximately 1.9 seconds (High Speed Mode) |
| Printer Driver Software |
OS: Windows® 2000/XP |
| Printing Method |
Direct Thermal Printing |
| Resolution |
325 dpi |
| Safety Compliance |
UL60950-1 Listed
CSA C22.2 No. 60950-1
UL60601-1 Listed
CSA No. 60601-1 |
| Thermal Head |
Thin film thermal 1280 dots |
| Type |
Black White Printer |
| Weight |
Approximately 5lb. 12 oz |
|
 |
