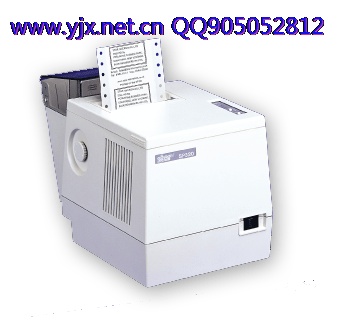

STAR SP322 Spocket Dot Matrix Printer
Small printer for 3.5 inches sprocket type paper. Ideal printer for applications, such as, Credit Authorization Terminal, and general pre-printed form printing
 Industry Famous Reliability
High print speed: 3.2 lines/second
Stepping motor provides fast paper feed (3 inches/second)
Internal power supply
Extended temperature range: 0°C - 50°C

| Models |
 SP322S |
| Printer Method |
9-pin serial impact dot matrix |
| Print direction |
Bi-directional |
| Number of columns |
40 (15CPI) |
| Character font |
5 x 9 7 x 9 |
| line spacing |
1/6" n/72" |
| Character size |
15, 12, 8, 6 CPI |
| Print speed |
3.2 lines / sec. |
| Print feed speed |
Approx. 3 inches / sec. |
| Ribbon cassette |
RC300B (black) : 1.6 million |

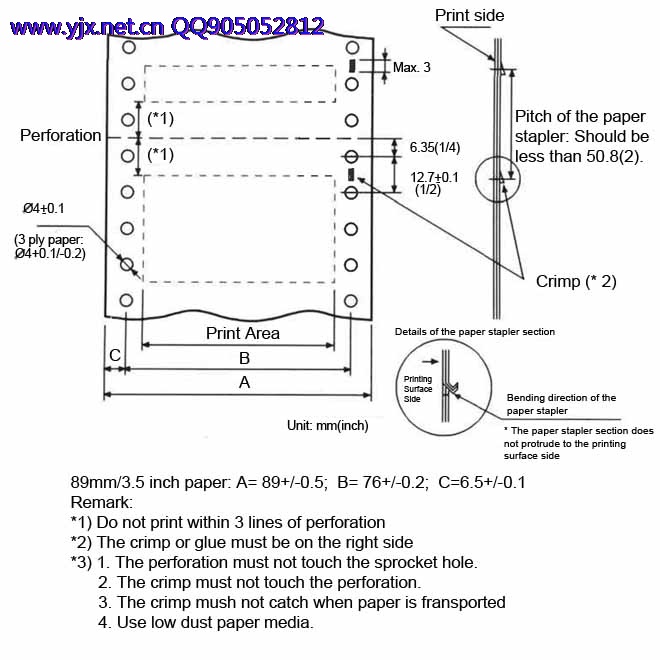

Paper:
Media
Material
Width
Diameter
Thickness
Copies
|
Sprocket fanfold
Normal or carbonless paper
3.5" (89mm)
0.07mm to 0.010mm - single copy
Three ply - Max 0.2mm
Each paper should be 0.05mm to 0.08mm in thickness |
Reliability:
MCBF
Print head |
8 million lines
200 million lines |
| Operating conditions |
0°C to 50°C, 10% to 90% RH (W/O condensation) |
| Storage conditions |
-20°C to 70°C, 5% to 95% RH (W/O condensation) |
| Power supply |
AC 100, 120, 220, 240V |
| Current Consumption |
Max 60W (AVG 30W) in operation, 10W in idle |
| Paper Out Detector |
Mechanical switch |
| Cash drawer driver |
2 circuits (24V,max 1A), one compulsion input |
| Data buffer |
Approx 4KB (selectable by DIP switch) |
| Interface |
Serial (RS232C) or Parallel (RS422A or 20mA current loop option) |
| Dimensions (mm) |
175 (W) X 303 (D) X 196 (H) (with paper holder) |
| Weight |
Approx. 3.9Kg |
|
|
|
|
 |
|
|
