PT1563 printer head

PT1563 printer head PT1563 printer head

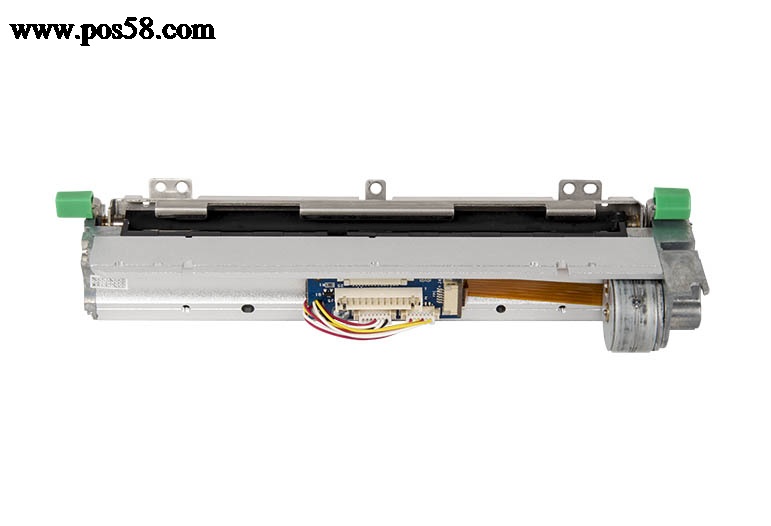

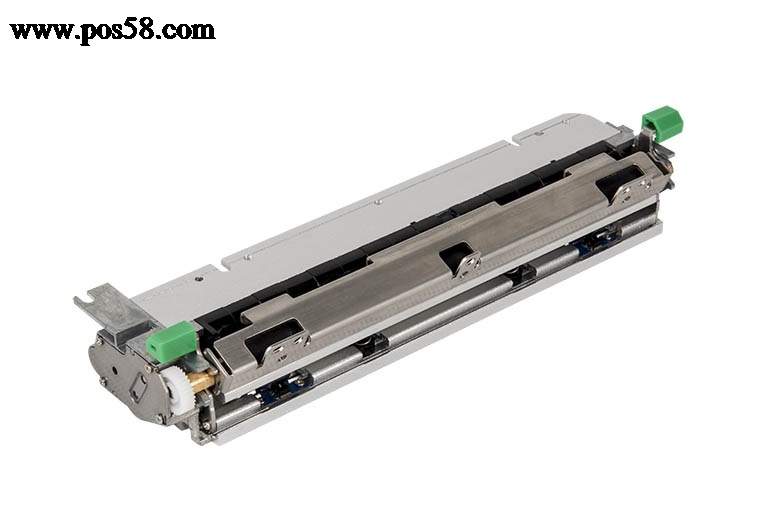

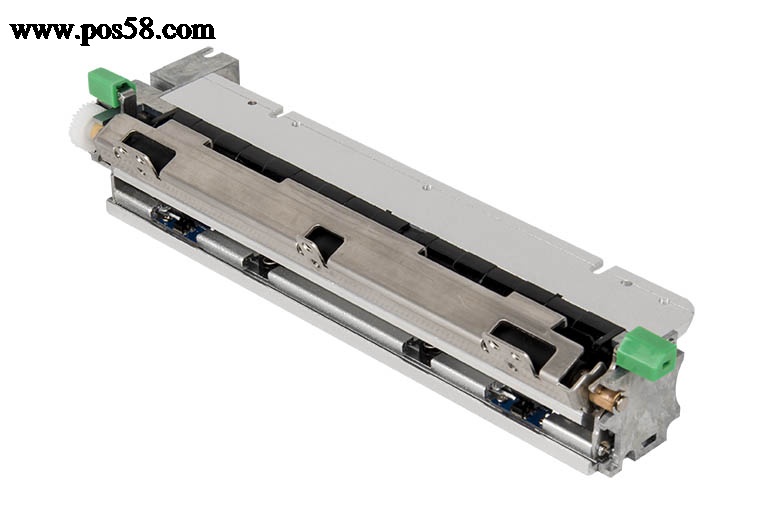

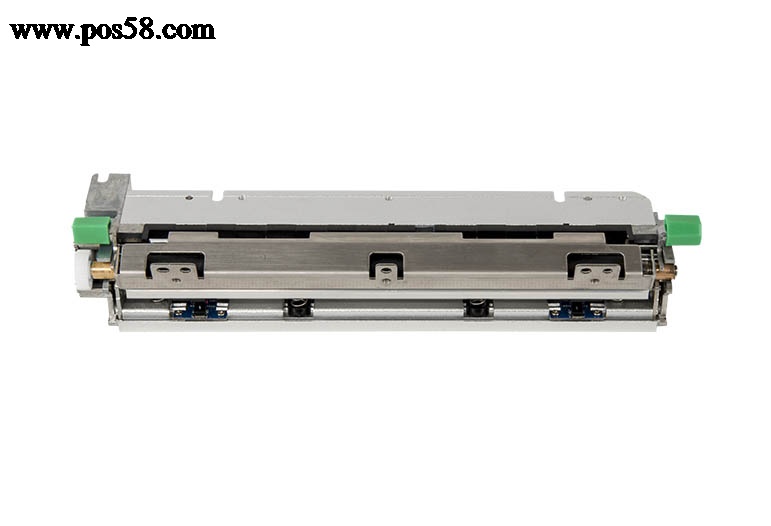

Product name:PT1563 printer head
Item:PT1563 printer head
Details:

PT1563P

Overview

    1. Operating voltage range

    The range of TPH operating voltage is 12V and the range of logic voltage is 3.0V~5.5V.

    2. High resolution printing

    A high-density printer head of 8 dots/mm makes the printing clear and precise.

    3. Printing speed adjustable

    According to driving power and sensitivity of thermal paper, set different printing speed required.The max speed is 50mm/s.

    4. Easy paper loading

    Detachable rubber roller structure makess the paper loading easier.

    5. Low noise

    Thermal line dot printing is used to guarantee low-noise printing






  • PT1563P_02
  • PT1563P_03
Specification

Series Model

PT1563P

PRINTING CHARACTERISTICS




Print Method

Direct line thermal

Resolution

8 dots/mm

Max. Printing Width

144mm

Number of Dots

1152

Paper Width

150mm ~ 156mm

Max. Printing  Speed

50mm/s

Paper Path

Curved

DETECTION




Head Temperature

By thermistor

Paper Out

By photo sensor

Platen Open

By mechanical SW

POWER SUPPLY




TPH Logic Voltage

3.0V-5.5V

Drive Voltage

12V±10%

PEAK CURRENT




Head(Max.)

2.64A(12V/64dots)

Motor

500mA

RELIABILITY




Pulse Activation

100 million

Abrasion Resistance

50KM

ENVIRONMENTAL




Operating Temperature

0 - 50℃

PHYSICAL CHARACTERISTICS




Dimensions(W*D*H)

198.5*55.89*38mm
