PF13型 RoHs LT-2320V JM2022ZY1 |
|
|
| Product name：PF13型 RoHs LT-2320V JM2022ZY1 |
| Item：PF13型 RoHs LT-2320V JM2022ZY1 |
| Details： |
|

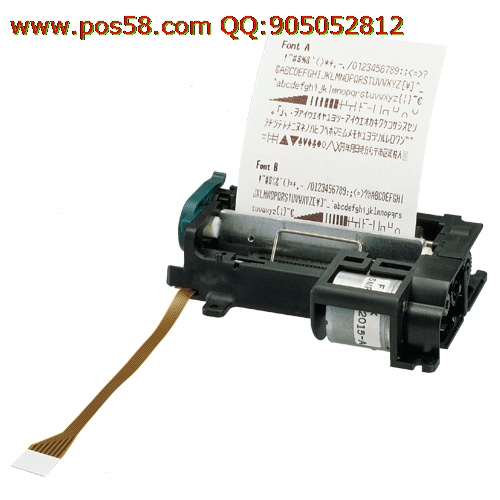

LT-2220/2320 Thermal
Printer Mechanism
|
|
|
Main Features:
|
|
|
|
|
The main benefit of thermal printing is high speed printing, low noise operation and excellent high density bar-code printing. Citizen Systems brings a large variety of thermal printer mechanism's to suite many different applications.
|
|
LT2220
|
LT-2220 2" Thermal Printer mechanism
|
|
LT2320
|
LT-2320 3" Thermal Printer mechanism
|
|
Paper for LT2220
|
T5750
|
Thermal Paper rolls 57 x 50 mm
|
|
T5770
|
Thermal Paper rolls 57 x 70 mm
|
|
Paper for LT2320
|
T8080
|
Thermal Paper rolls 80 x 80 mm
|
|
T80100
|
Thermal Paper rolls 80 x 100 mm
|
|
Paper Cutter
|
ACS225
|
Auto Cutter for LT-2220
|
|
ACS235
|
Auto Cutter for LT-2320
|
|
Gate array
|
202LA-00
|
Gate Array
|
|
Control Board
|
BD2-2220
|
Control Board for LT-2220
Parallel and RS-232 Interface
|
|
BD2-2221
|
Control Board for LT-2320
Parallel and RS-232 Interface
|
|
Printing Method
|
Line Thermal Dot Printing
|
|
Total Dots
|
432 Dot/Lines
|
576 Dot/Lines
|
|
Dot Density
|
8 Dots/mm
|
|
Printing width
|
54 mm
|
72 mm
|
|
Printing Speed
|
Max. 150 mm/sec (1200 dot-lines/sec)
|
|
Sensors
|
Head Temperature
|
Thermistor
|
|
Paper Presence
|
Photo Sensor
|
|
Head up
|
Photo Sensor
|
|
Voltage
|
VH
|
DC 21.6 ~ 26.4V
|
|
Vdd
|
DC 4.75 ~ 5.25V
|
|
Current Head Vp=5V
|
Approx. Max. 5.2A
|
|
Current Motor Vp=5V
|
Approx. Max. 0.41A
|
|
Paper feeding pitch
|
0.125 mm
|
|
Paper Type
|
Thermal
|
|
Paper Width
|
58 mm
|
80 mm
|
|
Paper Thickness
|
Standard type 60 ~ 105 µm, A-type: 110 ~ 150 µm
|
|
Reliability
|
Head Pulse Resistance
|
50,000,000 pulse or more
|
|
Head Wear Resistance
|
50 Km or more
|
|
Operating Environment
|
Temperature
|
0 ~ 45 °C
|
|
Humidity
|
35 ~ 85% RH
|
|
Storage Environment
|
Temperature
|
-20 ~ 60 °C
|
|
Humidity
|
10 ~ 90% RH
|
|
External Dimensions
(W x D x H)
|
91.5 x 58 x 20 mm
|
108 x 58 x 20 mm
|
|
Weight
|
Approx. 87g
|
Approx. 99g
|
|
 |
