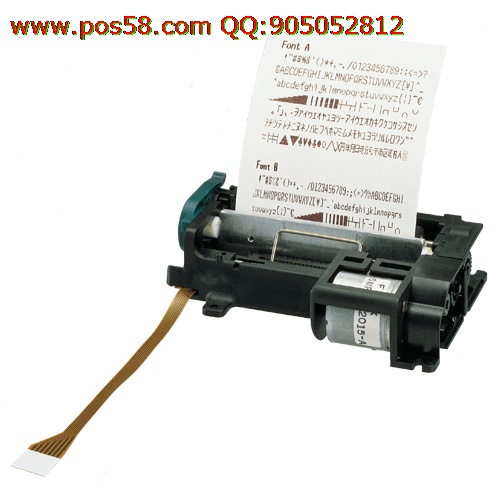

LT-2220/2320 Thermal Printer Mechanism

LT-2220/2320 Thermal Printer Mechanism LT-2220/2320 Thermal Printer Mechanism LT-2220/2320 Thermal Printer Mechanism
Product name:LT-2220/2320 Thermal Printer Mechanism
Item:LT-2220/2320 Thermal Printer Mechanism
Details:


LT-2220/2320 Thermal

Printer Mechanism


Main Features:





  • Line Thermal Printing

  • Ultra Compact Design

  • Lightweight

  • High Reliability

  • 57 or 80mm Paper width

    • LT2220: 58 mm

    • LT2320: 80 mm

  • Thick Paper capability up to 150 µm

  • 24V operation

  • Fixed Platen

  • LT-1220, BD2-1220U & LT-1320 still Available

The main benefit of thermal printing is high speed printing, low noise operation and excellent high density bar-code printing. Citizen Systems brings a large variety of thermal printer mechanism's to suite many different applications.

Order Codes

Description



LT2220

LT-2220 2" Thermal Printer mechanism

LT2320

LT-2320 3" Thermal Printer mechanism

Accessories

Order Code

Description



Paper for LT2220

T5750

Thermal Paper rolls 57 x 50 mm

T5770

Thermal Paper rolls 57 x 70 mm

Paper for LT2320

T8080

Thermal Paper rolls 80 x 80 mm

T80100

Thermal Paper rolls 80 x 100 mm

Paper Cutter

ACS225

Auto Cutter for LT-2220

ACS235

Auto Cutter for LT-2320

Gate array

202LA-00

Gate Array

Control Board

BD2-2220

Control Board for LT-2220

Parallel and RS-232 Interface

BD2-2221

Control Board for LT-2320

Parallel and RS-232 Interface

Specifications

LT-2220



LT-2320

Printing Method

Line Thermal Dot Printing

Total Dots

432 Dot/Lines

576 Dot/Lines

Dot Density

8 Dots/mm

Printing width

54 mm

72 mm

Printing Speed

Max. 150 mm/sec (1200 dot-lines/sec)

Sensors

Head Temperature

Thermistor

Paper Presence

Photo Sensor

Head up

Photo Sensor

Voltage

VH

DC 21.6 ~ 26.4V

Vdd

DC 4.75 ~ 5.25V

Current Head Vp=5V

Approx. Max. 5.2A

Current Motor Vp=5V

Approx. Max. 0.41A

Paper feeding pitch

0.125 mm

Paper Type

Thermal

Paper Width

58 mm

80 mm

Paper Thickness

Standard type 60 ~ 105 µm, A-type: 110 ~ 150 µm

Reliability

Head Pulse Resistance

50,000,000 pulse or more

Head Wear Resistance

50 Km or more

Operating Environment

Temperature

0 ~ 45 °C

Humidity

35 ~ 85% RH

Storage Environment

Temperature

-20 ~ 60 °C

Humidity

10 ~ 90% RH

External Dimensions

(W x D x H)

91.5 x 58 x 20 mm

108 x 58 x 20 mm

Weight

Approx. 87g

Approx. 99g
