EPSON Impact Mini Printers Shuttle impact dot matrix M-192.pdf printer

EPSON Impact Mini Printers Shuttle impact dot matrix M-192.pdf  printer
Product name:EPSON Impact Mini Printers Shuttle impact dot matrix M-192.pdf printer
Item:M-192.pdf printer
Details:

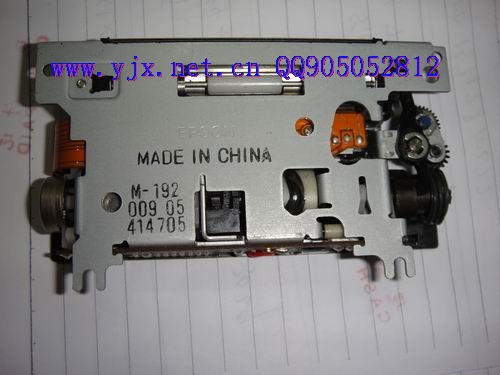

 EPSON Impact Mini Printers Shuttle impact dot matrix M-192.pdf  printer

Epson M-192 Series

Epson M-190 Series

Impact Mini Printers

Ultra-compact and light weight

  •

Printing Method Shuttle impact dot matrix
Printing Format
Font 5 x 7
Column capacity M-190: 24 columns
M-191: 32 columns
M-192: 40 columns
M-195: 18 columns
Character size M-190: 1.7 (W) x 2.6 (H)mm
M-191: 1.3 (W) x 2.6 (H)mm
M-192: 1.1 (W) x 2.6 (H)mm
M-195: 1.7 (W) x 2.6 (H)mm
Line spacing 3.7mm (In case of 5 x 7 and 3 dots / line paper feed)
Column spacing M-190: 2.0mm
M-191: 1.5mm
M-192: 1.2mm
M-195: 2.0mm
Number of total dots M-190: 144 dots / line
M-191: 192 dots / line
M-192: 240 dots / line
M-195: 108 dots / line
Printing Speed M-190: 2.5 line / sec.
M-191: 1.9 line / sec.
M-192: 1.5 line / sec.
M-195: 2.5 line / sec.
Printhead
Terminal Voltage 3.3 to 5.2 VDC
Peak current Approx. typ 2.5 A / solenoid
Motor
Terminal Voltage 3.8 to 5.2 VDC (3.8 to 5.5 VDC by Ni-Cd battery)
Mean current Approx. 0.35 A
Paper
Dimensions M-190/M-191/M-192: 57.5 ± 0.5mm (W) x dia. 83mm maximum
M-195: 44.5 ± 0.5mm
Total Thickness 0.06 to 0.085mm
Copy Capability Original + one copy
Ribbon Cassette ERC-09/22
Ambient Temperature 0° to 50°C (operating)
Reliability
Mechanism (MCBF) M-190: 1.5 x 106 lines
M-191: 1.1 x 106 lines
M-192: 0.9 x 106 lines
M-195: 1.5 x 106 lines
Printhead Life M-190: 1.5 x 106 lines
M-191: 1.1 x 106 lines
M-192: 0.9 x 106 lines
M-195: 1.5 x 106 lines
Overall Dimensions 91.0 (W) x 46.9 (D) x 15.8 (H) mm
Weight Approx. 100g
