产品展示

YJX-628UKC BT-628C 3

YJX-628UKC BT-628C 3
产品名称:YJX-628UKC BT-628C 3
产品编号:YJX-628UKC BT-628C 3
详细说明:

Product Detail

    1.Feature:



    ★ 58mm kiosk ticket printer module;

    ★ With full or partly Auto-cutter ;

    ★ Supply three interface(Parallel+Serial+USB);

    ★ voltage:5-9V/12V

    ★ high printing speed





      2.:Application:



    ★ suit for 2" printer module

    ★ bank ticket machine

    ★ Kiosk printer module

    ★ barcode printer

    ★ Measureing equipment

    ★ Security Equipment



    3.Specification:





    Printing Method Thermal line dot printing
    Dots/line 384 dots/line
    Resolution 8
    effective Printing Width(mm) 48
    Paper Width(mm) 58
    Paper Thickness(μm) 60-85
    dot pitch(Horizontal) 0.125mm (8 dots/mm)-dot denistiy
    dot pitch(Vertical) 0.125mm (8 dots/mm)-line feed pitch
    number of columns ANK32 columns/line(max 12*24dot font)
    W x D x H(mm) 84×52×36(W*D*H)
    Weight(g) 230
    Head temperature detection Thermistor
    power for print head 4.2-8.5VDC,average current1.8A(at 5V),2.6A(at 7.2V),2.8A(at 8.0V)
    power for cut motor 5-9V,Max1A
    power for logic 2.7-5.25V,Max0.01A
    head life 150km/100 million pulses
    cutter life 1,000,000cuts
    Head temperature detection via thermistor
    Head-up detection via thermistor
    Out-off -paper detection via photo interrupter

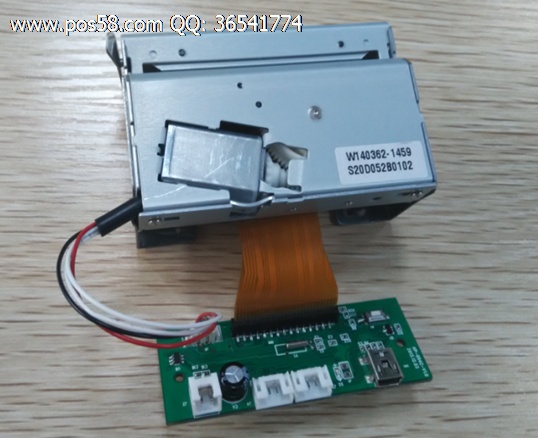

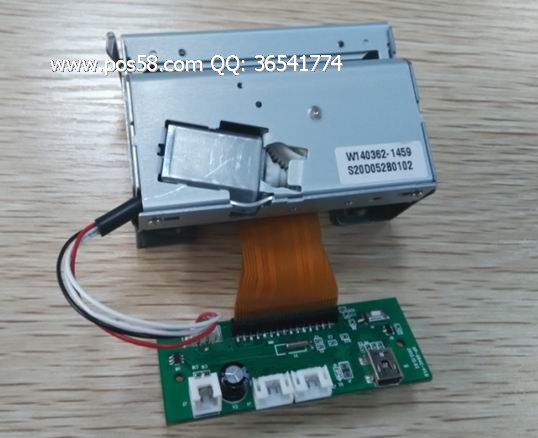

    4.Picture:
