Thermal Printer 热敏打印机APU-9247-C01 APU-9347-C01 APU-9247-C02 APU-9347C02 |
|
| 产品名称：Thermal Printer 热敏打印机APU-9247-C01 APU-9347-C01 APU-9247-C02 APU-9347C02 |
| 产品编号：Thermal Printer 热敏打印机APU-9247-C01 APU-9347-C01 APU |
| 详细说明： |
-
-

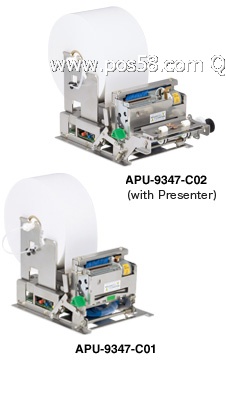

Sub-assembled Printer Unit 24V
Sub-assembled Printer Unit
APU-9000-C series
- Max.printing speed: 250mm/sec
- Roll paper capacity: up to Φ152.4mm (6inch)
- Interface: Serial, USB model
- Operating temperature : -20°C to 60°C
- Various drivers
| Model |
APU-9247-C01 |
APU-9347-C01 |
APU-9247-C02 |
APU-9347-C02 |
|
*1 ESC/POS™ :Registered trademark of SEIKO EPSON CORP.
*2 Use recommended thermal papers.
*3 Excluding protrusion
Windows® is the registered trademark of Microsoft Corporation(USA).
|
| Presenter |
No |
Yes |
| Printing |
Method |
Thermal line dot printing |
| Number of dots/line |
448 |
640 |
448 |
640 |
| Resolution(dots/mm) |
8 |
| Paper width(mm) |
58 /60 |
80/82.55 |
58/60 |
80/82.55 |
| Printing width(mm) |
54/56 |
76/80 |
54/56 |
76/80 |
| Speed(mm/sec )max |
250 |
| Paper path |
Straight |
| Character matrix(H x W dots) |
24 x 24, 24 x 12, 16 x 16, 16 x 8 |
| Character size(H x W mm) |
3.0 x 3.0, 3.0 x 1.5, 2.0 x 2.0, 2.0 x 1.0 |
| Character type |
Extended graphics character set, Katakana character set,
Optional font, Downloaded character,
User-defined character, JIS 1&2 level kanji |
| Bar code |
UPC-A/E, JAN(EAN)8/13, ITF, CODE39,
CODABAR, CODE93,CODE128,EAN128, PDF417,
Data Matrix, Maxi Code, QR Code |
| Power supply(V) |
21.6 to 26.4 |
| Communication interface |
Serial(RS-232C), USB, Selected Model |
| Input buffer |
2048 bytes |
| Command |
ESC/POS™ *1conformity |
| Cutting |
Method |
Slide type |
| Cutting type |
Partial cut / Full cut |
| Service life |
Pulse activation(pulse) |
150 million |
| Abrasion resistance (km) |
150*2 |
| Paper cutting(cut) |
1,000,000 |
| Operating temperature(°C) |
-20 to 60 |
| Dimensions(W x D x H mm) |
136.0 x 165.0 x 135.0*3 |
136.0 x 216.2 x 135.0*3 |
| Mass(g) |
Approx.1500 |
Approx.1600 |
Approx.1600 |
Approx.1700 |
| Driver |
Windows® XP/Vista/7(32bit/64bit), OPOS(XP), Linux |
Serial interface specification
| Item |
Specification |
| Baud rate |
57600,115200 bps |
| Data bit |
8bits |
| Parity bit |
Odd, Even, or None |
| Stop bit |
1bit |
| Control method |
H/W BUSY, Xon/Xoff |
USB interface specification
| USB printerclass 2.0 conformity |
Power connector conversion board
| Model |
PB-01-1 |
|
*4 Use under specific environment and printer setting only.
*5 Excluding protrusions.
|
| Supported AC adapter |
PW-A2421-W1*4 |
Dimensions
(W x D x H mm) |
35.0 x 55.0 x 16.6*5 |
| Cable length (mm) |
360 |
|
 |
