LTP8235
LTP8235

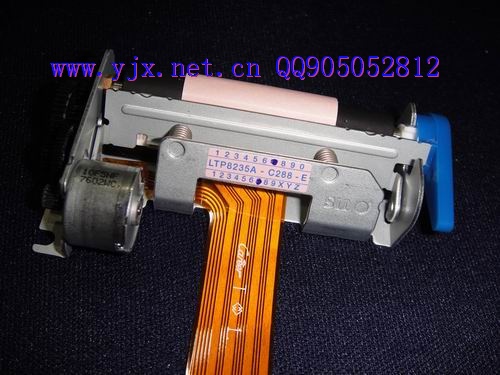

LPT8235 is a line thermal printer with a resolution of 6 dots/mm and high speed printing of 60 mm/s max. It features an extremely compact design in a rugged metal housing.
Ideal for EFT-POS, POS, portable communication terminals and battery-driven devices, the LTP8235 maximizes printer functionality in applications where low voltage, size and weight are a priority. The printer is available with or without paper sensor. The paper sensor enables the comfortable automatic paper loading functions through paper detection. A head up lever is offered as option part.
Features
- Resolution of 6dots/mm
- High speed, low voltage printing
- (40mm/s @ 6V, 50mm/s @ 7.2V, 60mm/s @ 8.0V)
- Low 6.0 to 8.0V power supply operation
- Compact and lightweight (approx. 50g)
- Low noise thermal line dot printing
- Available with or without paper sensor
- Head up lever available as option
