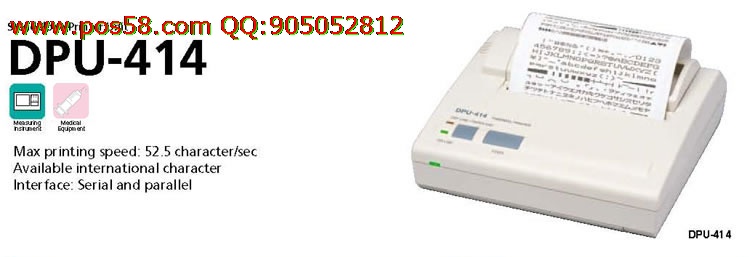

seiko DPU-414-40B-E
|
|
DPU-414-40B-E |
| Printing |
Method |
Thermal serial dot printing
|
| Number of dots/line(HxW) |
9 x 320
|
| Paper width(mm) |
112  |
| Printing width(mm) |
89.6
|
| Speed(character/sec) max |
52.5
|
| Paper path |
Curved
|
| Character matrix(HxW dots) |
9 x 7
|
| Character size(HxW mm) |
2.5 x 1.9, 2.5 x 0.9(Condensed)
|
| Number of columns |
40, 80(Condensed)
|
| Character type |
Extend Graphics Character set, Alphanumeric, International Characters, Katakana Character set
|
| Power supply(V) |
Specified AC adapter, Ni-MH Battery
|
| Battery |
Without(option)
|

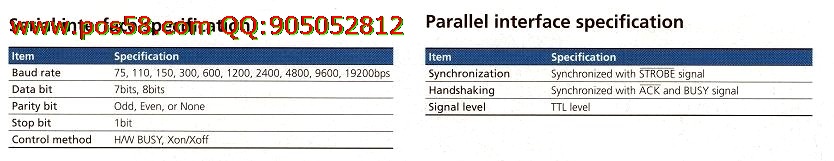

| Communication interface |
Parallel(36pin Amphenol), Serial(9pin D-SUB)
|
| Input buffer |
28K bytes
|
| Command |
ESC/P*1 conformity
|
| Cutting |
Tear bar
|
| Operating |
Temperature(°C) |
0 to 40
|
| Humidity(%RH) |
30 to 80 (Non condensation)
|
| Service life(line) |
500,000 *2
|
| Dimensions(WxHxD mm) |
160.0 x 170.0 x 66.5(printer unit only) *3
|
| Mass(g) |
Approx.580(without Battery)
|
| Standard |
FCC, CE, VCCI, CCC
|
| Option |
AC Adapter, Battery
|
|
*1 ESC/P TM : Registered trademark of SEIKO EPSON CORP. *2 Use recommended thermal papers *3 Excluding protrusion.
|
|
 |
|
