SEIKO CAPD245D-E CAPD245B-E CAPD245E-E |
|
| 产品名称：SEIKO CAPD245D-E CAPD245B-E CAPD245E-E |
| 产品编号：SEIKO CAPD245D-E CAPD245B-E CAPD245E-E |
| 详细说明： |

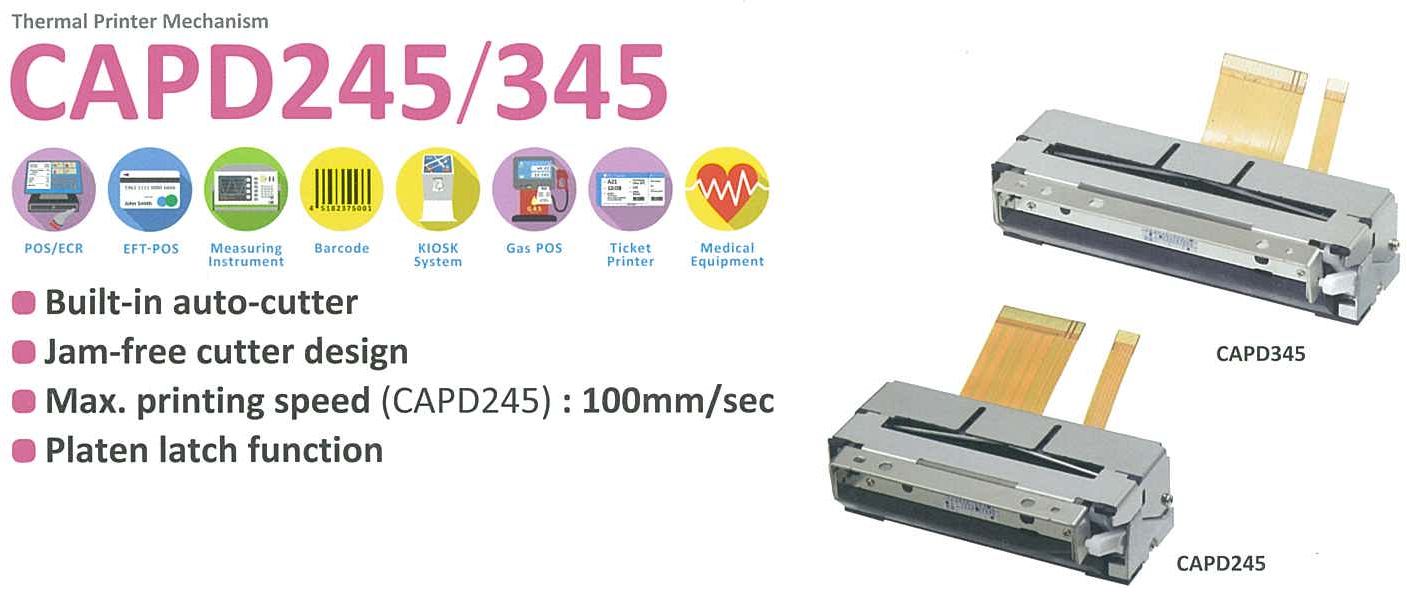

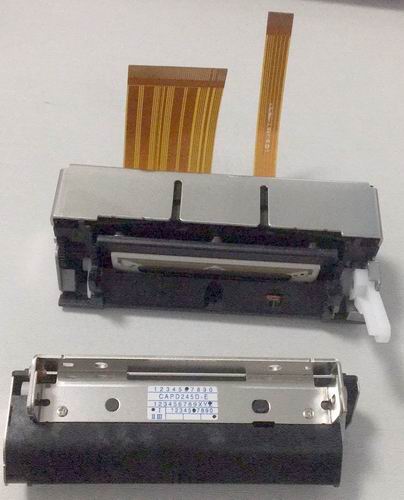

SEIKO CAPD245D-E CAPD245B-E CAPD245E-E
| Model |
CAPD245
|
CAPD345 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
384
|
576
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58
|
80
|
| Printing width(mm) |
48
|
72
|
| Speed (mm/sec)max |
100
|
80
|
| Paper path |
Curved
|
Detection
|
Head temperature |
By thermistor
|
| Platen position |
By mechanical switch
|
| Out of paper |
By photo interrupter
|
| Cutter home position detection |
By photo interrupter
|
| Power supply (V) |
Operation voltage (Vdd) |
2.7 to 3.6/ 4.75 to 5.25
|
| Operation voltage (Vp) |
4.75 to 9.5
|
6.5 to 9.5
|
Peak current (A)
|
Head |
3.66 (9.5V/64 dots)
|
3.60(9.5V/64 dots)
|
|
5.49 (9.5V/96 dots)
|
5.40(9.5V/96 dos)
|
| Motor |
0.6
|
| Cutter |
0.7
|
Auto Cutting
|
Method |
Slide type
|
| Paper thickness (µm) |
54 to 80 *1
|
| Cutting type |
Full cut/ Partial cut (Leave center point)
|
| Operation time (sec/cycle) max |
Approx. 1.0
|
| Cutting pitch(mm)min |
10
|
| Cut frequency(cut/min) max |
30
|
| Service life |
Pulse activation(pulse) |
100 million
|
| Abrasion resistance(km) |
50 *1
|
| Paper cutting (cut) |
500,000 *1
|
| Operating temperature(°C) |
-10 to 50
|
| Dimensions(WxHxD mm) |
83.1 x 35.4 x 26.9 *2
|
105.1 x 35.4 x 27.2*2 *2
|
| Mass(g) |
Approx. 125
|
Approx. 148
|
|
|
*1 Use recommended thermal papers
*2 Excluding mounting part |
|
Interface / CPU*3
|
|
|
Model |
| USB interface board |
IFD501-01UK
|
| Serial interface board |
IFD501-01SK
|
| CPU |
PTD50P01
|
| Software |
Printer Driver, OPOS, Linux®
|
|
|
*3 Interface boards and CPU are mutual options with LTPDX45 series
|
|
 |
