产品展示

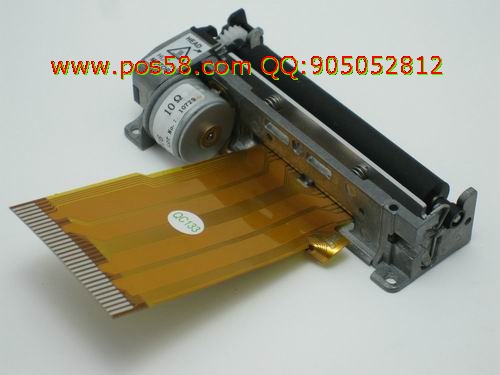

POS58专用打印机芯

POS58专用打印机芯
产品名称:POS58专用打印机芯
产品编号:POS58专用打印机芯
详细说明:
pos58 printer head
SPECIFICATIONS
Paper entry width: 58mm
Printing width: 48mm
Printing speed: 80mm/s Max
Paper thickness(μm): 60~80μm
Reliability: 100KM

Products Compatible information
pos58 printer head Fujitsu:FTP-628MCL101
Seiko:LTPZ245M
APS:FM205-HS
Bixolon:SMP685
ALPS:PTMBL1B00A
EPSON:M-T173H
pos58B printer head Bixolon:SMP650U/V
OVERVIEW
2-inch thermal printer mechanism
Thermal printer mechanism pos58 printer series is ultra compact, high speed, light weight thermal printer, printing on 2-inch wide paper (58mm). This thermal printer mechanism, with easy loading mechanism, improves paper loading and printer mechanism maintainance greatly.
FEATURES
Unique Functions:
1. The gear box has a rigid fixation structure, which can protect gears and guide the platen roller gear effectively when the printer is under cover; therefore, it can lengthen the life of the printer.
2. Optional two paper end sensor design, able to choose the paper sensor position, suitable for the cash register with double printers.
Functions:
1. With easy loading mechanism, greatly improving paper loading and printer mechanism maintenance.
2. High endurance of 100km printing length (using F230AA Mitsubishi paper or equivalent thermal paper)
APPLICATIONS
1.Portable terminals
2.POS
3.Ticket issuing terminals
4.Measurement equipments
5.Banking terminals
6.Cash registers
SPECIFICATION
Model Pos58 printer head
Printing Printing method Thermal dot printing
Number of dots 384dots/line
Resolution 8dots/mm(203dpi)
Paper entry width (mm) 58mm(paper width 57±0.5mm)
Printing width (mm) 48mm
Paper thickness(μm) 60-80μm
Max printing speed 80mm/s
Paper loading Easy loading
Detection Paper end sensor By photo interrupter
Head temperature By NTC thermistor 30KΩ(25℃)
Operating voltage For printer head 4.2V~8.5V
For motor 4.5V~8.5V
For logic 3.3V~5V
Peak current For Head 3.09A(at 8.5V,64dots)/4.64A(at 8.5V,96dots)
For Motor 0.6A
Life Abrasion resistance 100KM(by using F230AA Mitsubishi paper or equivalent thermal paper)
Pulse activation 100 million
Operating Environment Operating temperature 0-50℃
Operating humidity 10~90%RH (No condensation)
Storage temperature -20~60℃
Storage humidity 5~95%RH (No condensation)
Physical characteristics Mechanism Dimension 69.3*32.8*15.3mm
Mechanism Weight 46g
Interface RS232,RS232TTL,USB(under developing)
Cable length 69mm,130mm optional
