LTPZ245J-C384-E

产品名称：LTPZ245J-C384-E

产品编号：LTPZ245J-C384-E

详细说明：

LTPZ245J-C384-E

Easy Paper Operation Mechanism Low Voltage

Thermal Printer Mechanism

LTPZ series

Max. printing speed: 75mm/sec
Compact and light-weight
Operating temperature: -20°C to 50°C

Model		LTPZ245
Model		Horizontal	Vertical
^1 Use recommended thermal papers. ^2 Excluding protrusion.
Printing	Method	Thermal line dot printing
	Number of dots/line	384
	Resolution (dots/mm)	8
	Paper width (mm)	58
	Printing width (mm)	48
	Speed (mm/sec) max	75
	Paper path	Curved
Detection	Head temperature	By thermistor
Detection	Out of paper	By photo interrupter
Power supply (V)	Operation voltage (Vdd)	3.0 to 3.6 / 4.75 to 5.25
Power supply (V)	Operation voltage (Vp)	4.75 to 9.5
Peak current (A)	Head	3.60 (9.5V / 64 dots)
Peak current (A)	Motor	0.6
Service Life	Pulse activation (pulse)	100 million
Service Life	Abrasion resistance (km)	50^*1
Operating temperature (˚C)		-20 to 50

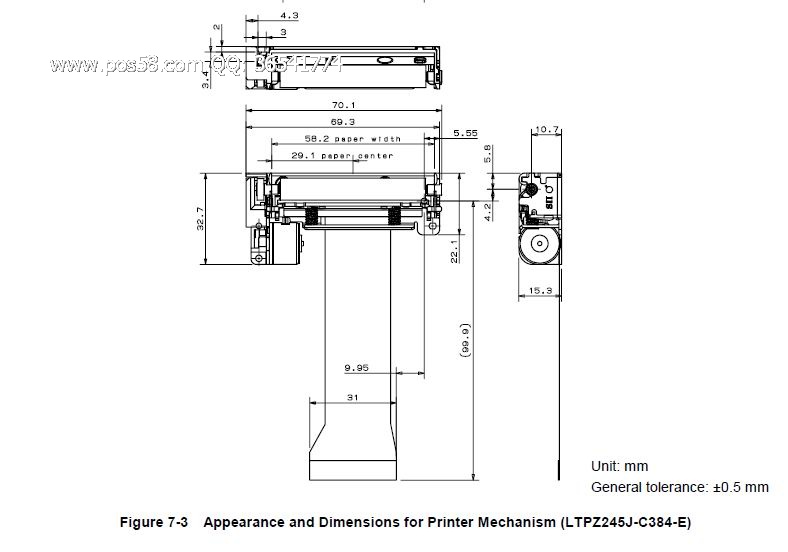

Dimensions (W×D×H mm)		70.1 × 32.7 × 15.3^*2	70.1 × 21.8 × 31.0^*2
Mass (g)		Approx. 44	Approx. 46
