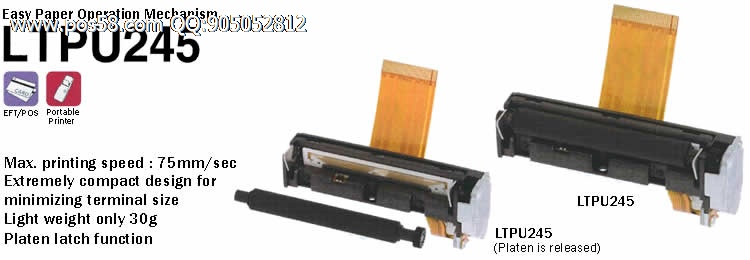

LTPU245
LTPU245
LTPU245 (released platen)
Small...smaller...LTPU245! Dimensions speak for themselves: 69.8 x 17.3 x 25.0 (WxDxH) This mechanism is extremely compact, designed specifically for portable printing applications, such as handheld EFT POS terminals. It is fast as well with a maximum printing speed of 75mm/s. A platen latch function secures an unchangeable pressure between thermal head and platen.
Features
- Extremely compact
- Light weight of 30 g
- Maximum printing speed of 75mm/s
- Platen latch function
|
|
LTPU245
|
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
384
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58  |
| Printing width(mm) |
48
|
| Speed(mm/sec) max |
75
|
| Paper path |
Curved
|
| Detection |
Head temperature |
By thermistor
|
| Out of Paper detection |
By photo interrupter
|
| Power supply(V) |
Operation Voltage(Vdd) |
3.0 to 3.6 / 4.75 to 5.25
|
| Operation Voltage(Vp) |
5.5 to 9.5
|
| Peak current(A) |
Head |
3.66 (9.5V/64 dots on)
|
| Motor |
0.6
|
| Service life |
Pulse activation(pulse) |
100 million
|
| Abrasion resistance(km) |
50 *1
|
| Operating temperature(°C) |
-10 to 50
|
| Dimensions(WxHxD mm) |
69.8 x 17.3 x 25.0 *2
|
| Mass(g) |
Approx. 30
|
|
|
*1 Use recommended thermal papers. *2 Excluding protrusion. |
