产品展示

LTPJ245D.pdf

产品名称：LTPJ245D.pdf

产品编号：LTPJ245D.pdf

详细说明：

Easy Paper Operation Mechanism Low Voltage

Max. printing speed: 75mm/sec
Compact and light-weight

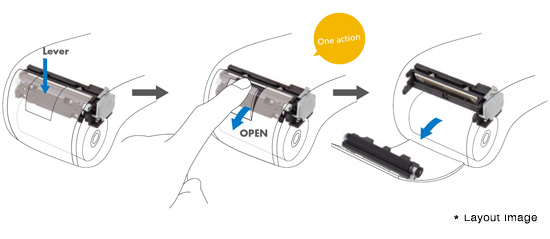

Front open mechanism with latch function

Model		LTPJ245D	LTPJ245G
Printing	Method	Thermal line dot printing
	Number of dots/line	384
	Resolution(dots/mm)	8
	Paper width(mm)	58
	Printing width(mm)	48
	Speed(mm/sec)max	75
	Paper path	Straight
Detection	Head temperature	By thermistor
Detection	Out of Paper	By photo interrupter
Power supply(V)	Operation voltage(Vdd)	3.0 to 3.6 / 4.75 to 5.25	3.0 to 3.6
Power supply(V)	Operation voltage(Vp)	5.5 to 9.5
Peak current(A)	Head	3.6 (9.5V/64 dots on)	2.49 (9.5V/45 dots on)
Peak current(A)	Motor	0.6
Service life	Pulse activation(pulse)	100million
Service life	Abrasion resistance(km)	50 ^*1
Operating temperature (°C)		-10 to 50
Dimensions(W x D x H mm)		68.5 x 31.5 x 22.0 ^*2	68.5 x 36.5 x 22.0 ^*2
Mass(g)		Approx.39	Approx.38
1 Use recommended papers 2 Excluding protrusion
