LTPJ245A-S384-E.pdf printer thermal.pdf
|
型号
|
LAPJ245 |
| 打印 |
方法 |
热敏行点打印
|
| 行数(点阵/行) |
384
|
| 解像度(点阵/毫米) |
8
|
| 纸宽(毫米) |
58  |
| 打印宽度(毫米) |
48
|
| 打印速度(毫米/秒) 最高 |
75
|
| 入纸方向 |
直入
|
检测方式
|
打印头热度 |
热敏感应
|
| 缺纸检测 |
光感应器
|
| 电源(V) |
工作电压: (Vdd) |
3.0 至 3.6 / 4.75 至 5.25
|
| 工作电压: (Vp) |
5.5 至 9.5
|
| 电流(A) |
打印头 |
3.6 (电压为9.5V/64点)
|
| 马达 |
0.6
|
| 打印头寿命 |
脉冲个数 |
100 百万脉冲
|
| 打印长度(公里) |
50 *1
|
| 操作温度(℃) |
-10 至 50
|
| 尺寸(宽x深x高 毫米) |
68.5 x 31.5 x 22.0 *2
|
| 重量(克) |
约 39
|
|
|
* 1 需使用推荐之热敏打印纸
* 2 不计凸画部份 |
|
|
LTPJ245
LTPJ245
LTPJ245 (released platen)
This extremely compact mechanism is dedicated for mobile applications, such as EFT POS devices or any kind of other handheld device. In order to improve design flexibility this mechanism is equipped with a new highly innovative latch function providing most natural and easy operation when paper must be replaced.
Features
- Very compact design
- Maximum printing speed 75 mm/s
- Lifetime of 50 km abrasion and 100 million activation pulse

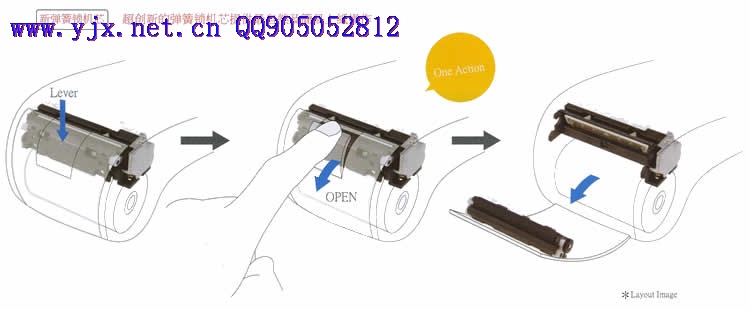

- New latch function Top to Bottom shortens total length of design
- Platen lock on paper holder side saves space at the end product
