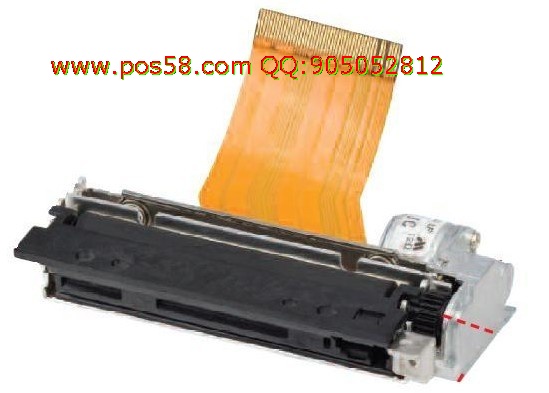

LTPD345C-C576-E |
|
| 产品名称：LTPD345C-C576-E |
| 产品编号：LTPD345C-C576-E |
| 详细说明： |
|
|

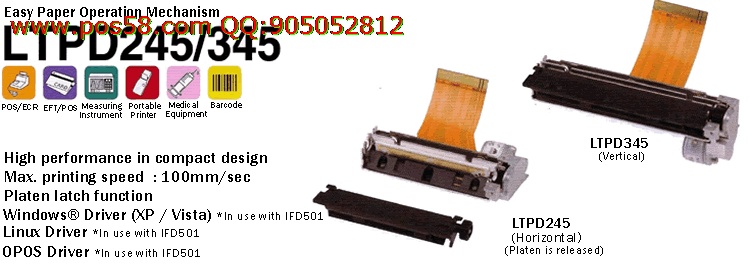

LTPD245
|
LTPD345 |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
384
|
576
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58  |
80 |
| Printing width(mm) |
48
|
72
|
| Speed(mm/sec) max |
100
|
80
|
| Paper path |
Curved
|
| Detection |
Head temperature |
By thermistor
|
| Platen position detection |
By mechanical switch
|
| Out of Paper detection |
By photo interrupter
|
| Power Supply(V) |
Operation Voltage(Vdd) |
2.7 to 3.6 / 4.75 to 5.25
|
| Operation Voltage(Vp) |
4.75 to 9.5
|
| Peak current(A) |
Head |
3.66 (9.5V / 64 dots)
|
3.60 (9.5V / 64 dots)
|
|
5.49 (9.5V / 96 dots)
|
5.40 (9.5V / 96 dots)
|
| Motor |
0.6
|
| Service Life |
Pulse activation (pulse) |
100 million
|
| Abrasion resistance(km) |
50 *1
|
| Operating temperature(°C) |
-10 to 50
|
| Dimensions(WxHxD mm) |
Horizontal |
69.0 x 30.0 x 15.0 *2
|
91.0 x 30.0 x 15.0 *2
|
| Vertical |
69.0 x 15.0 x 30.0 *2
|
91.0 x 15.0 x 30.0 *2
|
| Mass(g) |
Approx. 40
|
Approx. 58
|
|
|
*1 Use recommended thermal papers. *2 Excluding protrusion.
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
 |
