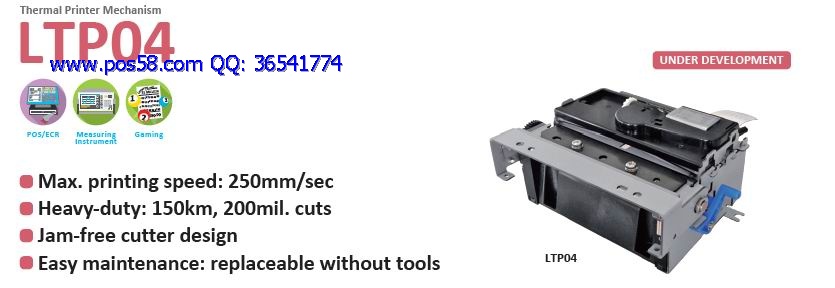

LTP04-347 |
|
| 产品名称：LTP04-347 |
| 产品编号：LTP04-347 |
| 详细说明： |
| Model |
LTP04-347
|
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
576
|
| Resolution (dots/mm) |
8
|
|
Paper width (mm)
|
80
|
| Printing width (mm) |
72
|
| Speed (mm/sec) max |
250
|
| Detection |
Head temperature |
By thermistor
|
| Platen position |
By mechanical switch
|
| Out of paper |
By photo interrupter
|
| Power supply (v) |
Operation voltage (Vdd) |
3.0 to 3.6
|
| Operation voltage(Vp) |
21.6 to 26.4
|
| Peak current(A) |
Head |
8.0 (26.4 / 192 dots)
|
| Motor |
1.2
|
| Service Life |
Pulse activation (pulse) |
200 million*1
|
| Abrasion resistance (km) |
150*1
|
| Operating temperature (oC) |
0 to 50
|
| Dimension (W*D*H mm) |
121.0 x 72.0 x 56.0*2
|
| Mass (g) |
Approx. 500
|
|
*1 Use recommended thermal papaers. *2 Excluding protrusion.
|
| Auto Cutter |
| Model |
ACU04-37
|
| Thermal printer |
LTP04-347
|
|
Cutting
|
Method |
Slide type
|
| Paper width (mm) |
80 |
| Paper thickness (µm) |
60 to 80*3
|
| Cutting type |
Partial cut (Leave center point)
|
| Operating time (sec/cycle) max |
0.3 (24V)
|
| Cutting pitch (mm) min |
10
|
| Cut frequency (cum/min) max |
30
|
| Operating voltage (v) |
Motor
|
21.6 to 26.4
|
| Detector (control switch) |
4.5 to 5.5
|
| Starting current (A) |
1.2
|
| Life (cut) |
2,000,000*4
|
| Dimension (W x D x H mm) |
95.6 x 39.0 x 16.2
|
| Mass (g) |
Approx. 100
|
|
*3 Use recommended thermal papers *4 Depending upon specified condition.
|
|
 |
