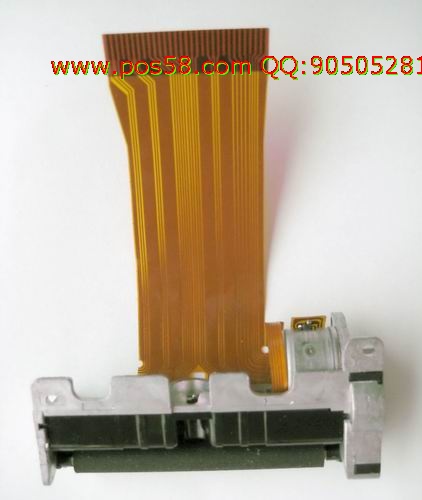

2" thermal printer mechanism compatible with
Fujitsu FTP-628 MCL701
| Printing Method |
Thermal |
| Dots/line |
384 |
| Resolution |
8dots/mm |
| Printing Width |
48mm |
| Paper Width |
58mm |
| Feed Resolution |
0.125mm |
| Paper End Sensor |
Optical |
| Head voltage |
3.0-8.0V(LV); 4.2-9.0V(ST) |
| Logical voltage |
3.0-7.0V |
| Head-up detection |
Mechanical switch (B103 model only) |
| Dimensions (WxDxH mm) |
70x33.5x15 |
| Reliability |
>100 million pulse (print ratio=12.5%), >50 km |
| Weight |
~80g |
| Head temperature detection |
Thermistor |
| Paper detection |
Photo interrupter |
| Operaation Environment |
0～40℃；20～80%RH |
| Storage Environment |
-25～70℃；10～90%RH |
