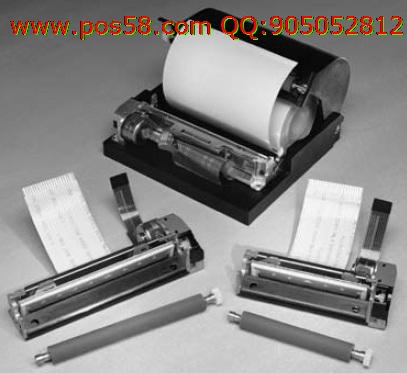

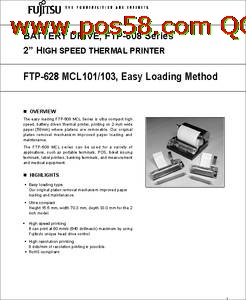

The easy loading FTP-608 MCL Series is ultra compact high speed, battery driven thermal printer, printing on 2-inch wide paper (58mm) where platens are removable. Our original platen removal mechanism improved paper loading and maintenance. The FTP-608 MCL series can be used for a variety of applications, such as portable terminals, POS, ticket issuing terminals, label printers, banking terminals, and measurement and medical equipment.

· Easy loading type Our original platen removal mechanism improved paper loading and maintenance.· Ultra compact Height 15.5 mm, width 70.3 mm, depth 33.0 mm for the 2 inch model.· High speed printing It can print at 80 mm/s (640 dotlines/s) maximum by using Fujitsu's unique head drive control. · High resolution printing 8 dots/mm of resolution printing is possible.·RoHS compliant

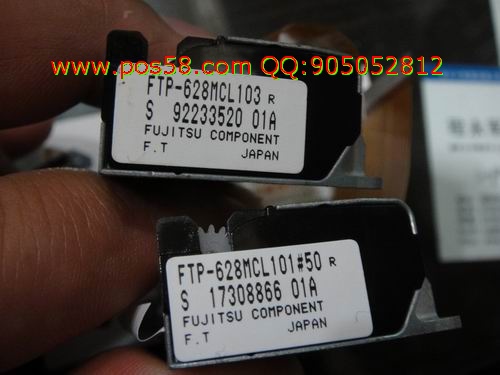

Item Printer mechanism LSI for driving Interface Board Parallel Serial USB Interface Cables Parallel Serial USB Power cable Head, motor, logic Part Numbe FTP-628MCL101 (2-inch wide paper: 58mm) without platen open detect switch FTP-628MCL103 (2-inch wide paper: 58mm) with platen open detect switch FTP-628CU301 R (ANK only) FTP-628CU601R FTP-628DCL300R (Centronics) FTP-628DSL305R (RS FTP-629Y301 FTP-628Y402

Item Part number Printing method Dot structure Dot pitch (Horizontal) Dot pitch (Vertical) Effective printing area Number of columns Paper width Paper thickness Printing Speed Character types Specifications FTP-628MCL101/103 Thermal-line dot method 384 dots/line mm (8 dots/mm)--Dot density mm (8 dots/mm)--Line feed pitch 48 mm ANK 32 columns/line (maximum 12x 24 dot font) µ m (some paper in this range may not be used because of paper characteristics Maximum 80mm/sec. (640 dot line/sec.) at 8.5V Alphanumeric, katakana: 159 types International and special characters: 195 types JIS Kanji level 1, level 2, non-Kanji (supported only when Kanji CG is mounted): about 6800 types

Item Interface For print head Operating Voltage For motor For logic Dimensions Printer mechanism Interface board Printer mechanism Interface board Specification FTP-628MCL101/103 Conforms RS232C / Centronics 4.2 VDC 8.5 V, average current 0.87A (0.93),peak value Printing ratio: 12.5%, printing speed V 4.2 VDC 1 A maximu 0.1 A maximum 15.5 mm (WxDxH x 15mm (WxDxH ) Approximately 42 g Approximately 20 g Pulse resistance: 100 million pulses/dot (under our standard conditions). Abrasion resistance: paper traveling distance 50km (print ratio: 25% or less) Operating temperature* Operating environment Operating humidity Storage temperature Storage humidity Detection function Head temperature detection 85% RH (no condensation +60° C (paper not included 90% RH (no condensation ) Detected by thermistor

Paper out/mark detection Detected by photo-interrupte r High sensitive paper: Standard paper: TF50KS-E4 (Nippon Paper ) TK50KS-E (Nippon Paper) PD150R (Oji Paper) FTP-020P0701 (58mm)

TK60KS-F1 (Nippon Paper) FTP-020P0102 (58mm) Medium life storage paper: PD170R (Oji Paper) AFP220VBB-1 (Mitsubishi Paper) Long life storage paper: PD160R-N (Oji Paper) AFP-235 (Mitsubishi Paper) TP50KJ-R (Nippon Paper) HA112AA (Nippon Paper)
