产品展示

Epson M-T102A autocutter Series Printers

Epson M-T102A autocutter Series Printers
产品名称:Epson M-T102A autocutter Series Printers
产品编号:Epson M-T102A autocutter Series Printers
详细说明:


EPSON M-T102A: 58MM, 5V, HUS, LEVER=STD, CABLE, AC, PES

COMPACT 5V THERMAL LINE PRINTER



RRP:£70.96 incl. VAT (£59.13 ex. VAT)


  •

EPSON M-T102A: 58MM, 5V, HUS, LEVER=STD, CABLE, AC, PES

COMPACT 5V THERMAL LINE PRINTER




  •


SPECIFICATIONS

Product features and specifications are subject to change without prior notice.

CLOSE ALL
SKU C41D086031

PRINT TYPE

Print method Thermal line printing

PRINT

Resolution 8 dots/mm

PAPER

Paper Types Receipt
Paper dimensions 57.50 ± 0.50 (W) mm x dia. 127.00 mm max.
Paper Path Curved

GENERAL

Product weight 0.27 kg

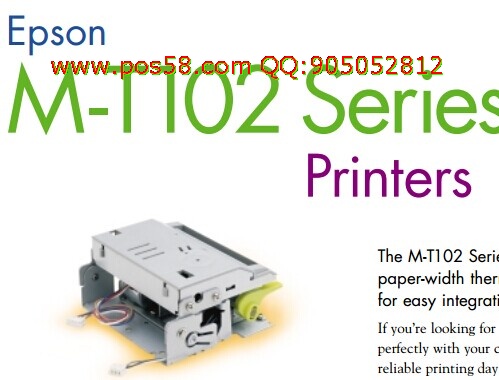

Epson M-T102 Series Printers
Reliable Low-Voltage
Thermal Mechanism

General Printing speed 50mm/sec. at 7V 50mm/sec. at 7V 50mm/sec. at 7V
Paper width 57.5 +/- 0.5mm 57.5 +/- 0.5mm 57.5 +/- 0.5mm
Printing width 48mm 48mm 48mm
Number of dots 384 dots/line 384 dots/line 384 dots/line
Dot density 8 dots/mm 8 dots/mm 8 dots/mm
Electrical Head/motor 5.0-7.5 VDC 5.0-7.5 VDC 5.0-7.5 VDC
Circuit 5.0 VDC +/- 5% 5.0 VDC +/- 5% 5.0 VDC +/- 5%
Auto-cutter n/a n/a 6 VDC
Sensor Paper-end sensor n/a Reflecting photosensor Reflecting photosensor
Print-head temp.sensor Thermistor Thermistor Thermistor
Head-unload sensor n/a Micro-switch Micro-switch
Auto-cutter stop position n/a n/a Micro-switch
Paper Handling Semi-auto loading NO OK OK
Paper feed force 0.588N (60gf) 0.588N (60gf) 0.588N (60gf)
Paper hold force 500gf 500gf 500gf
Max. roll diameter 80mm 80mm 80mm
Mechanical Width 69.15mm 69.15mm 87mm
Depth 51.2mm 51.2mm 73.3mm
Height 20mm 20mm 40.5mm
Weight Approx. 85g Approx. 85g Approx. 265g
Environmental Operating temp. 0-50 degrees C 0-50 degrees C 0-50 degrees C
Operating humidity 10-80% 10-80% 10-85%
Reliability Mechanism (MCBF) 5 million lines 5 million lines 5 million lines
Thermal head (LIFE) 50Km/100 million pulses 50Km/100 million pulses 50Km/100 million pulses
Auto-cutter (LIFE) n/a n/a 300,000 cuts
BA-T102 Specifications
General FLASH ROM (firmware) 4Mbit, upgradeable via the communication port
RAM 1Mbit
CPU 16 Bit, Toshiba TMP 95 series
Power 6 VDC
Status Printer status feedback via communication port
Mechanisms Supports M-T101, M-T102 and M-T102A
Status Indicators Drive for (3) LED's, POWER, ERROR and PAPER OUT on remote display connector
Switches Paper feed switch input provided on remote display connector
Communications Ports (2) board versions:
Serial RS-232 asynchronous serial interface, up to 19200 baud rate
Flow Control: Hardware: DTR/DSR or CTS/RTS (default), Software: Xon/Xoff
Parallel IEEE 1284 bi-directional parallel interface, from host to printer, Centronics compatible,
printer to host in nibble or byte mode
Option 12 VDC version
Configuration Via hardware jumpers and software utility
Thermal Head Control Historical control
Paper Feed Semi-automatic paper loading or push-button feed
