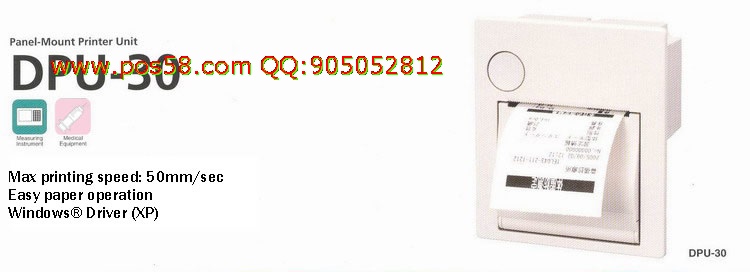

DPU-30-0B |
| Printing |
Method |
Thermal line dot printing
|
| Number of dots/line |
384
|
| Resolution(dots/mm) |
8
|
| Paper width(mm) |
58
|
| Printing width(mm) |
48
|
| Speed(mm/sec) max |
50
|
| Paper path |
Curved
|
| Character matrix(HxW dots) |
24 x24, 24 x 12, 16 x 16, 16 x 8
|
| Character size(HxW mm) |
3.0 x 3.0, 3.0 x 1.5, 2.0 x 2.0, 2.0 x 1.0
|
| Number of columns |
16, 32, 24, 48
|
| Character type |
Downloaded Character, User-defined Character,Alphanumeric, Katakana Character set, JIS1&2 level Kanji
|
| Power supply(V) |
Driving Voltage (5.0 to 8.7)
|
| Communication interface |
Parallel (Centronics), Serial (RS-232C)
|
| Input buffer |
4K bytes
|
| Command |
ESC/POSTM *1 conformity
|
| Cutting |
Tear bar
|
| Operating |
Temperature(°C) |
0 to 50
|
| Humidity(%RH) |
30 to 80 (Non condensation)
|
| Service life |
Pulse activation (pulse) |
100 million
|
| Abrasion resistance (km) |
50 *2
|
| Dimensions(WxHxD mm) |
101.0 x 116.0 x 61.0 *3
|
| Mass(g) |
Approx.230
|
| Standard |
FCC, CE, VCCI
|
*1 ESC/POS TM : Registered trademark of SEIKO EPSON CORP. *2 Use recommended thermal papers *3 Excluding protrusion.
Windows ® is the registered trademark of Microsoft Corporation (USA).
|
|
