Citizen/Citizen printer CBM920; CBM-920; CBM-920II; CBM-920II-40RJ

Citizen/Citizen printer CBM920; CBM-920; CBM-920II; CBM-920II-40RJ

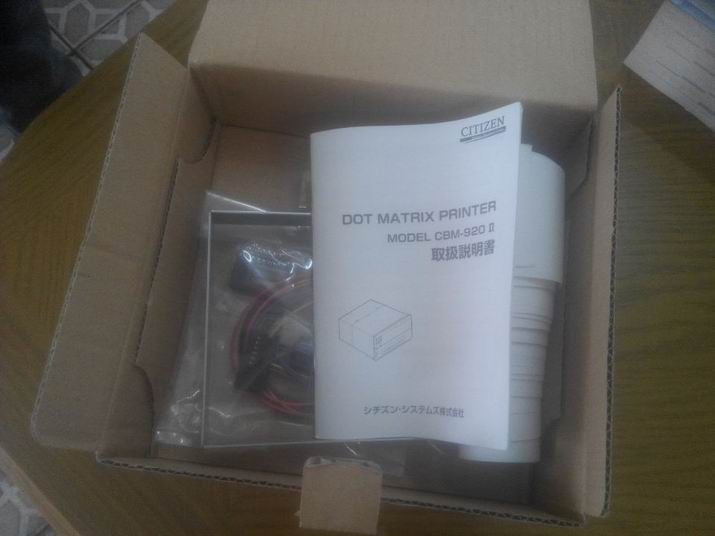

产品名称:Citizen/Citizen printer CBM920; CBM-920; CBM-920II; CBM-920II-40RJ
产品编号:Citizen/Citizen printer CBM920; CBM-920; CBM-920II
详细说明:
Citizen/Citizen printer CBM920; CBM-920; CBM-920II; CBM-920II-40RJ

IMPACT DOT PRINTERS
CBM-920 Type II

Category Paper width Printing speed Model
POS Printers 58mm 6.0 lines/sec. (30 columns) CD-S500/501
69mm 5.4 lines/sec. (36 columns)
76mm 5.0 lines/sec. (40 columns)
76mm 3.6 lines/sec (iDP3550-F/iDP3551-F)
3.0 lines/sec (iDP-3550-P)
iDP3550/3551
58mm 2.5 lines/sec (24 columns)
1.8 lines/sec (40 columns)
CBM-910 Type II
Panel Printers 58mm 2.5 lines/sec (24 columns)
1.8 lines/sec (40 columns)
CBM-920 Type II

CBM-920 Type II


Paper roll

58mm


Paper roll

58mm



24 columns


40 columns



Receipt


Ticket


Kitchen



Serial


Parallel



Features

  • Palm size and Light weight
  • Bit image graphics printing
  • 2K bytes input buffer
  • Paper-near-end sensor
  • Paper auto loading
  • Panel mount installation for industrial applications
  • CBM-920/iDP3110 emulation

To Page Top


Specifications

Model CBM-920 Type II
(24 columns)
CBM-920 Type II
(40 columns)
Printing method Serial impact dot matrix
Printing direction One-way printing
Font (5 + 1) × 8 (4 + 0.5) × 8
Head pins 8 pins (4 opins × 2 heads)
Print speed Approx. 2.5 lines/sec Approx. 1.8 lines/sec
Number of print columns 144 dots/line 180 dots/line
Character size 1.62 × 2.4mm 1.08 × 2.4mm
Character spacing 1.98 mm 1.19 mm
Paper feed speed Approx. 5 lines/sec. Approx. 3.6 lines/sec.
Character type PC437/852/857/858/860/863/864/865/866/869, WPC1252,
Katakana, CBM-920 emulation (Japan, International)
Line pitch 3.52 mm
Paper Type Single sheet, copier paper (original and copy)
Size 57.5 ±0.5 (W) × Φ50mm
Core internal dimension: Φ12 ± 1 mm
Core outer dimension: Φ18 ± 1mm
Thickness Total thickness: 0.09 mm or less
Ink ribbon cartridge Special ink ribbon cartoridge, Color: Single color (Black)
Interface Serial (RS-232C compliant), Parallel (Centronics compliant)
Emulation CBM-920 and iDP3110 (selectable with memory switch)
Buffer size 2k bytes/72 bytes
(Selectable with memory switch on Serial I/F model)
Supply voltage (*1) Driving system: DC 5V±5% (0.2A)
Driving system: DC5V ±10% (approx. 2.5A, approx. 4A peak)
Power consumption Approx. 7VA (Printing), Approx. 0.5VA (Stand-by)
Outside dimensions 115 (W) × 65 (D) × 119mm (H)
109 (W) × 62 (D) + 0mm /-0.5mm (Panel installation hole size)
Weight Approx. 0.5kg (including mounting brackets, ink ribbon cartridge)
Operating temperature
and humidity
0 to 40°C, 35 to 85% RH (No condensation)
Storage temperature
and humidity
-20 to 60°C, 10 to 90% RH (No condensation)
Reliability Printer: MCBF 1.5 million lines Printer: MCBF 1.0 million lines
Safety standards UL (RU), TÜV, CE Marking, FCC Class A

*1: The power supply is not included, please prepare for the appropriate voltage of DC5V±5% and current capacity of 2.5A or more and a peak current of 4A or more.

Papge Top


Type Classification

CBM-920II
(1)
-
40
(2)
R
(3)
F
(4)
-
2
(5)
DC5v
(6)
(1) Model type CBM 920 Type II
(2) Number of columns 24: 24 columns/144 dots
40: 40 columns/180 dots
(3) Interface R: Serial (RS-232C compliant)
P: Parallel (Centronics compliant)
(4) Market F: Internationall
(5) Model type 2: CBM-920 type II
(6) Power supply DC5V: DC 5V operation

To Page Top


Accessories

Standard Accesory


Wiring cable

Optional Accesory

Ink Ribbon Cartirdge


Black color (IR-91B)
