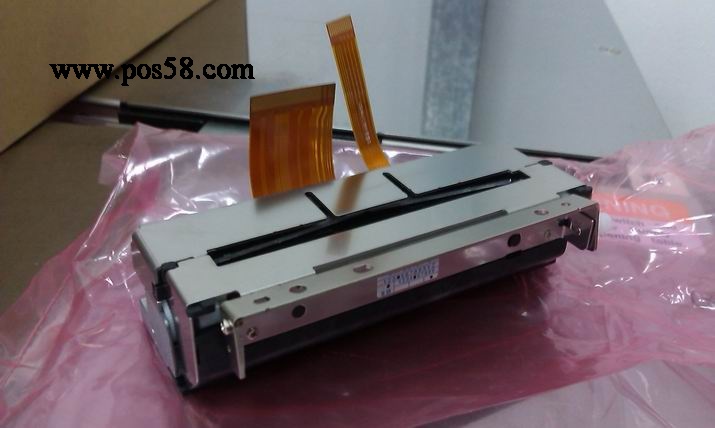

CAPD347H-E

CAPD347H-E
产品名称:CAPD347H-E
产品编号:CAPD347H-E
详细说明:

Easy Paper Operation Mechanism 24V

CAPD247/347

Thermal Printer Mechanism

CAPD247/347

  • Build in auto paper cutter
  • Jam-free cutter design
  • Max. printing speed : 200mm/sec
  • Platen latch function
  • Various drivers
  • POS/ECR
  • EFT/POS
  • Measuring instrument
  • Barcode
  • KIOSK system
  • GasPos
  • Ticket printer
  • Medical equipment
Model CAPD247 CAPD347
*1 Use recommended thermal papers *2 Excluding mounting part *3 Please see "Associated software tool" for details.
Windows® is the registered trademark of Microsoft Corporation(USA).
Printing Method Thermal line dot printing
Number of dots/line 432 576
Resolution(dots/mm) 8
Paper width(mm) 58+- 80+-
Printing width(mm) 54 72
Speed(mm/sec)max 200
Paper path Curved
Detection Head temperature By thermistor
Platen position By mechanical switch
Out of paper By photo interrupter
Cutter home position By photo interrupter
Power supply(V) Operation voltage(Vdd) 2.7 to 3.6 / 4.75 to 5.25
Operation voltage(Vp) 21.6 to 26.4
Peak current(A) Head 2.61(26.4V/144dots)
5.23(26.4V/288dots)
Motor 0.44 0.52
Cutter 0.64
Auto cutter Method Slide type
Paper thickness (µm) 54 to 91*1 54 to 80*1
Cutting type Full cut / Partial cut
(Leave center point)
Operating time(sec/cycle)max Approx. 0.5
Cutting pitch(mm)min 10
Cut frequency(cut/min)max 30
Service life Pulse activation(pulse) 100 million
Abrasion resistance(km) 100*1
Paper cutting(cut) 1,000,000*1
Operating temperature (°C) -10 to 50
Dimensions(W x D x H mm) 83.1 x 35.4 x 26.9 *2 105.1 × 35.4 × 27.2*2
Mass(g) Approx.131 Approx.154
Software*3 Printer driver, OPOS, POS for .NET, Linux®
Interface / CPU
  Model
*Interface boards and CPU are mutual options with LTPDX47 series.
*Please see Interface / CPU in LTPD247/347 page for details.
USB interface board IFD001-01UK
Serial interface board IFD001-01SK
CPU PTD00P01

ifd001-01uk ifd001-01sk
