2 inch thermal printer head for ticket Print speed, low noise, good reliability, high print quality, easy on paper.
2 inch thermal printer head for ticket Features
1 compact and lightweight, beautiful shape, easy to use and maintenance,
Power consumption, low running costs,
3 Print speed is fast, high quality, no noise,
4 can be free to choose the election Bluetooth or USB port communication
5 using a larger capacity 1400mAh battery
6. Larger paper positions.
2 inch thermal printer head for ticket Applications
1 business cash registers
2 Fiscal machine bluetooth receipt printer
3 bank POS printer
4 Logistics
Traffic police, postal services, urban management, tobacco
6. Supermarket, garment industry.
2 inch thermal printer head for ticket specification
|
5804 Printer Specifications
|
|
Printing method
|
Thermal Print
|
|
Print speed
|
80mm/S
|
|
Feed speed
|
About 80mm/S(Continuous feed)
|
|
Print width
|
48mm ,384 points / lines
|
|
Feed direction
|
Friction feed, unidirectional
|
|
Point density
|
203dpi×203dpi/Inches
|
|
Characters per line
|
(16 × 16): 24 characters / 48 characters per line in English
(24 × 24): 16 characters / 32 characters per line in English
(32 × 32): 12 characters / 24 characters per line in English
(48 × 48): 8 characters / 16 characters per line in English
|
|
Data Buffer
|
2KB
|
|
Printable characters
|
GBK font can be printed, ASCIC font of all characters (Unicode encoding customizable multi-language font)
|
|
Character size
|
16 × 16/24 × 24/32 × 32/48 × 48 dot matrix
|
|
Print content
|
English or other languages, numbers, various characters, binary image, the one-dimensional bar codes, 2D codes, etc.
|
|
Control instructions
|
Compatible with ESC / POS print instruction set
|
|
Paper type (single)
|
57.50mm±0.5mm×ø40mm
|
|
External interfaces
|
Support Mini-USB interface / Bluetooth / RS232 serial printer
|
|
Bluetooth
|
The standard bluetooth 3.0, bluetooth 2.0, 3.0, 4.0, optional
|
|
Drive
|
Support WIN7/WIN8/XP,32-bit and 64 - bit operating system under the special drive
|
|
Cut Type
|
Manual tear
|
|
Power supply
|
DC9V 3A
|
|
Battery
|
Rechargeable lithium batteries:7.4V/1400mAh
|
|
Charging time
|
2 hours
|
|
Power Print
|
Battery or power supply alone can print
|
|
Print Life
|
>50KM
|
|
Work Environment
|
Temperature 0~50 degree,Relative Humidity:10~90%
|
|
Size
|
103mm×75mm×46mm
|
|
Weight
|
0.19kg
|
Contact: skype:beryl916

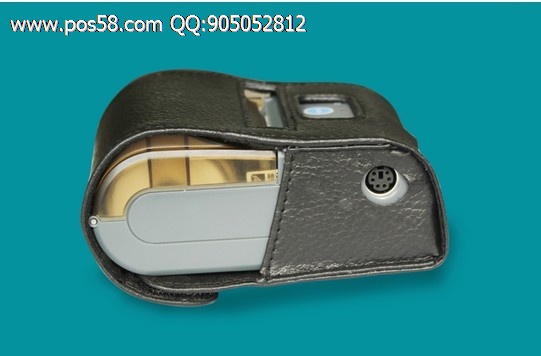

Different casing choose
